5m x 5m Buoyancy Air Bag 8T Load Lightweight Non Slip Surface
Descripation

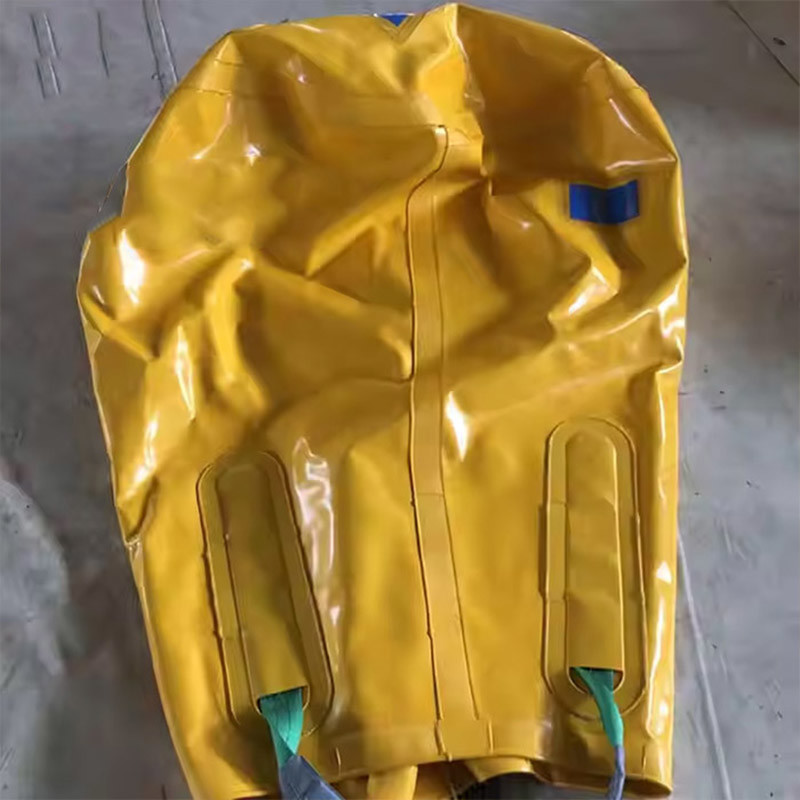

Designed to meet the demands of offshore engineering, underwater
salvage, and ship maintenance, Hongruntong Marine’s parachute-type
lifting bags deliver precise vertical lift with reduced lateral
drift. The open-bottom design allows for smooth water displacement,
ensuring stable ascension.
Our lifting bags feature pressure relief valves and reinforced
lifting belts, providing added safety during complex underwater
operations and minimizing the risk of over-inflation or load
imbalance.
Specifications
| Product Name | Heavy Duty Inflatable Air Bags |
| Raw Material | Top-Notch PVC Coating Fabric |
| Type | Parachute |
| Size | 500kg, 1000kg, 5000kg 10000kg,etc |
| Thickness | 0.4-1.2mm, or as request |
| Color | Yellow,Blue,Black,etc |
| Density | 0.33-0.9g/cm3 |
| Safety Factor | 7:1 |
| Accessories | Valve, Inflatable Tube, Repair Material |
| OEM | Welcome |
| Warranty | 3 Years |
Tolerances | +/- 0.03 on densities +/- 0.2 mm on thickness +/- 0 to +3mm on width +/- 0 to +3mm on length |
| Model | Lifting Capacity | Dimensions | Appr. Weight |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
Features
UV Stabilized Materials
Protective treatment maintains fabric integrity after 5000+ hours
of direct sunlight exposure.
Chemical Resistance
Withstands exposure to hydrocarbons, mild acids, and alkaline
solutions (pH 3-11 range).
Operational Temperature Range
Performs reliably from -30°C to +65°C without material degradation.
Load Distribution Grid
Internal cross-stitch pattern evenly distributes stress across
entire surface area.
Applications
● Underwater construction support
● Sunken barge lifting
● Marine archaeology recovery
● Offshore wind turbine maintenance
Advantages
Over 30 Years of Manufacturing Expertise
Decades of proven capability in underwater air lift solutions.
Specialization in Underwater Lift Bags
Sole focus ensures deep technical knowledge and quality control.
ISO Certified Production Facility
Strict adherence to ISO 9001 standards for consistent quality.
In House R&D Team
Dedicated engineers driving innovation and product optimization.
FAQ
1. How are they transported and stored?
They are lightweight, foldable, and come with compact packaging for
easy transport and storage.
2. Are custom sizes or configurations available?
Absolutely. We offer OEM and customized options based on your
lifting needs.
3. How are the bags secured to the object being lifted?
Using built-in D-rings, lifting belts, and connection slings that
secure the bag to the load.
4. What is the typical lifespan of the air bags?
With proper care, they can last for many years and hundreds of
uses.
