Reinforced Salvage Air Bags For Ship Recoery 6 Layer Construction
Wear Resistant
Description

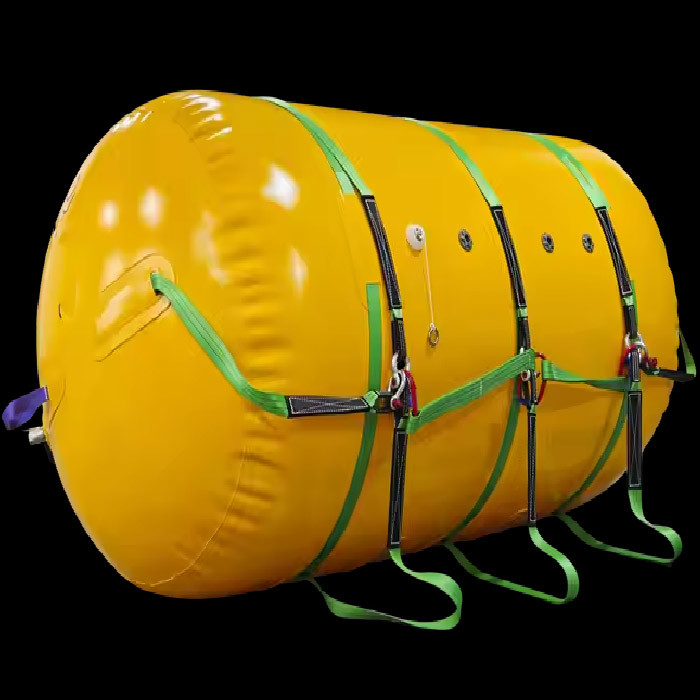

Hongruntong Marine’s cylindrical salvage airbags are designed for
versatile marine applications, offering unmatched flexibility and
lifting strength. With diameters ranging from 0.8m to 2.5m, these
airbags can lift heavy underwater objects up to hundreds of tons
with precision and safety.
Our airbags are fabricated using vulcanized rubber and synthetic
layers for enhanced pressure retention, corrosion resistance, and
thermal stability. Widely trusted by shipyards and offshore
contractors, they are lightweight, portable, and easy to deploy in
tight underwater spaces.
Specifications
| Product Name | Marine Salvage Airbags |
| Raw Material | PVC Coating Fabric |
| Type | Cylindrical |
| Size | 500kg, 1000kg, 5000kg 10000kg, etc |
| Thickness | 0.4-1.2mm, or as Request |
| Color | Yellow, Blue, Black, etc |
| Density | 0.33-0.9g/cm3 |
| Safety Factor | 7:1 |
Tolerances | +/- 0.03 on Densities +/- 0.2 mm on Thickness +/- 0 to +3mm on Width +/- 0 to +3mm on Length |
| Model | Buoyancy | Diameter | Length | Appr. Weight |
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] |
| HM-MSA01 | 200 | 441 | 500 | 1,000 | 5 |
| HM-MSA02 | 500 | 1,103 | 800 | 1,000 | 8 |
| HM-MSA03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 |
| HM-MSA04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 |
| HM-MSA05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 |
| HM-MSA06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 |
| HM-MSA07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 |
| HM-MSA08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 |
| HM-MSA09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 |
| HM-MSA10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 |
| HM-MSA11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 |
| HM-MSA12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 |
| HM-MSA13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 |
| HM-MSA14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 |
| HM-MSA15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 |
| HM-MSA16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
Features
Quick Inflation and Deflation
Equipped with high-flow valves for rapid deployment and retrieval.
Safe Overpressure Protection
Built-in pressure relief valves prevent rupture or over-inflation
during operation.
Anti Slip Surface Texture
Outer surface provides better grip and safety when handling
underwater.
ISO9001 Certified Manufacturing
Strict quality control ensures product consistency and
international compliance.
Applications
● Marine Construction Buoyancy Aid
● Subsea Structure Relocation
● Ship Launching And Docking
● Floating Sunken Containers
Advantages
Fast Production Lead Times
Efficient workflow and large-scale capacity to meet urgent project
schedules.
Experienced Export Team
Over 60+ countries served with smooth documentation and global
logistics support.
Strict Pressure Testing for Every Airbag
Each unit is hydro- and air-tested before delivery to ensure
performance and safety.
Excellent RD and Innovation
Continuous improvement and new product development based on market
demand.
FAQ
1. How are the airbags inflated and deflated?
Using standard air compressors or scuba tanks via quick-connect
inflation valves and deflation outlets.
2. Do you offer custom designs?
Yes, we can customize size, lifting capacity, fittings, and
accessories to meet your project requirements.
3. How should the airbags be stored?
Store in a dry, shaded area away from direct sunlight and
chemicals. They should be fully deflated, cleaned, and rolled.
4. Can the airbags be used in rough seas?
Yes, but care must be taken during inflation and lifting to ensure
control and stability, especially in dynamic conditions.
