Heavy Lift Marine Airbags Superior Strength Weather Resistant High
Floatation
Description

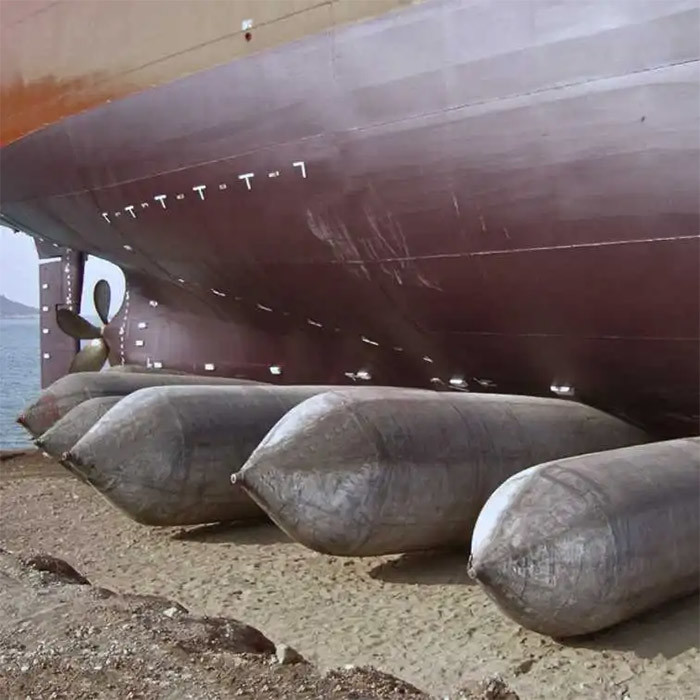

Marine Rubber Airbags revolutionize ship launching and recovery
with their high buoyancy and flexibility. Designed in sizes from
1.5m to 5m, they support vessels weighing 10–200+ tons,
distributing weight evenly for a smooth launch. Made from
reinforced rubber and nylon layers, they resist abrasions, oil, and
UV damage. Unlike traditional methods, these airbags reduce
infrastructure costs, require minimal manpower, and allow for
precise control during operations. Their quick-deployment feature
speeds up workflows, making them essential for shipbuilders, naval
bases, and repair docks.
Specifications
| Product Name | Marine Rubber Airbags |
| Keywords | Marine Airbag for Ship Launching |
| Material | 100% High Tensile NR |
| Dimensions | Diameter 0.5m - 3.0m, Length 3.0m - 28.0m, or As Request |
| Working Pressure | 0.05-0.25MPA |
| Technology | Overall Winding, High Pressure, Explosion-proof |
| Metal Parts | Q355 / SS304 / SS316 |
| OEM | Supported |
| MOQ | 1 |
| Repair Tools | Electric Heating Plate, Repair Materials, Glue, Free of Charge |
| Standard | ISO14409:2011 |
| Certificate | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| Package | Pallets, Wooden Cases |
| Service Life | 20 Years |
| Warranty | 36 Months |
| Diameter | Working Pressure | Working Height | Bearing Capacity |
| KN/m | Ton/m |
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 |
| 0.4m | 131.95 | 13.46 |
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 |
| 0.5m | 131.95 | 13.46 |
| 0.4m | 150.80 | 15.39 |
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 |
| 0.7m | 125.66 | 12.82 |
| 0.6m | 141.37 | 14.43 |
| 0.5m | 157.08 | 16.03 |
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 |
| 0.9m | 127.33 | 12.98 |
| 0.8m | 141.37 | 14.43 |
| 0.7m | 155.51 | 15.87 |
| 0.6m | 169.65 | 17.31 |
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 |
| 1.0m | 125.66 | 12.82 |
| 0.9m | 138.23 | 14.11 |
| 0.8m | 150.80 | 15.39 |
| 0.7m | 163.36 | 16.67 |
| 0.6m | 175.93 | 17.95 |
| * Other size can be provided follow client's requirements. |
Features
Even Weight Distribution
Prevents hull damage during ship launching/lifting operations.
Anti-Slip Surface Texture
Enhances stability and safety during deployment.
Quick Inflation Deflation
Compatible with standard air compressors for fast setup.
Reusable Design
Cost-effective solution for multiple projects over 5-10+ years.
Applications
● Submarine Pipeline Work
● Floating Dock Adjustments
● Barge Loading/Unloading
● Dam Construction Support
Advantages
Custom Load Capacities
From 10-ton mini airbags to 300-ton heavy-lift units with
customizable length (1-12m) and diameter (0.8-3m) configurations.
Advanced Anti Abrasion Technology
Ceramic-impregnated outer layer provides 50% better abrasion
resistance against rough hull surfaces and debris.
Saltwater Corrosion Protection
Specialized rubber formulation prevents salt crystallization damage
even after 5+ years in seawater environments.
UV Stabilized Compounds
UV inhibitors in all exterior layers maintain flexibility and
strength despite continuous sun exposure.
FAQ
1. Can they operate in extreme temperatures?
Yes, functional from -40°C to +80°C (-40°F to 176°F) without
performance loss.
2. How are they inflated?
Using high-flow air compressors (6–12 bar) via our quick-connect
valve system (30% faster inflation).
3. Are repairs possible?
Yes, we provide custom repair kits with vulcanizing patches for
field fixes.
4. Do you offer certifications?
All airbags are DNV-GL/ABS/CCS certified with full material
traceability.
