1.5m Marine Rubber Airbags Heavy Duty Durability Easy Deployment Superior Buoyancy
Description

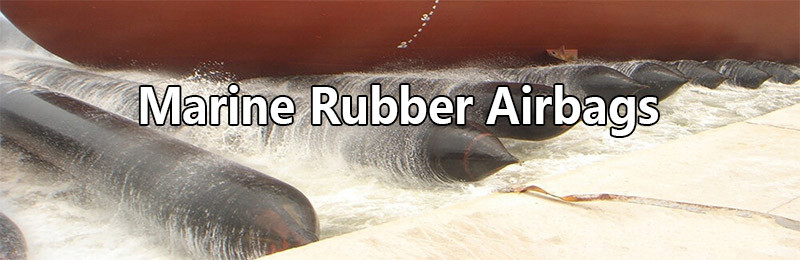

Marine rubber airbags are inflatable devices made from high-quality rubber materials. They are designed to provide buoyancy and support during various marine operations, such as ship launching, ship repairs, and heavy cargo transportation. These airbags are typically cylindrical or spherical in shape and consist of several rubber layers with synthetic cord reinforcement. The layers are vulcanized together to ensure a strong and airtight structure. Marine rubber airbags can withstand high pressure and have excellent resistance to abrasion, puncture, and weathering.
The buoyancy and lifting capacity of marine rubber airbags are
determined by their size, shape, and number of layers. They are
engineered to provide enough uplift force to lift and support heavy
loads while maintaining stability. One of the main advantages of
marine rubber airbags is their versatility and adaptability to
different marine environments and conditions. They can be used in
various applications, including ship launching and landing, caisson
positioning, salvage operations, and pipeline laying. Marine rubber
airbags offer a cost-effective alternative to traditional methods
such as dry docks or cranes.
Specifications
Product Name | Marine Rubber Airbags |
Keywords | Marine Airbag for Ship Launching |
Material | 100% High Tensile NR |
Dimensions | Diameter 0.5m - 3.0m, Length 3.0m - 28.0m, or As Request |
Working Pressure | 0.05-0.25MPA |
Technology | Overall Winding, High Pressure, Explosion-proof |
Metal Parts | Q355 / SS304 / SS316 |
OEM | Supported |
MOQ | 1 |
Repair Tools | Electric Heating Plate, Repair Materials, Glue, Free of Charge |
Standard | ISO14409:2011 |
Certificate | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
Package | Pallets, Wooden Cases |
Service Life | 20 Years |
Warranty | 36 Months |
Diameter | Working Pressure | Working Height | Bearing Capacity | |
KN/m | Ton/m | |||
D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
0.5m | 109.96 | 11.22 | ||
0.4m | 131.95 | 13.46 | ||
D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
0.6m | 113.10 | 11.54 | ||
0.5m | 131.95 | 13.46 | ||
0.4m | 150.80 | 15.39 | ||
D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
0.8m | 109.96 | 11.22 | ||
0.7m | 125.66 | 12.82 | ||
0.6m | 141.37 | 14.43 | ||
0.5m | 157.08 | 16.03 | ||
D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
1.0m | 113.10 | 11.54 | ||
0.9m | 127.33 | 12.98 | ||
0.8m | 141.37 | 14.43 | ||
0.7m | 155.51 | 15.87 | ||
0.6m | 169.65 | 17.31 | ||
D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
1.1m | 113.10 | 11.54 | ||
1.0m | 125.66 | 12.82 | ||
0.9m | 138.23 | 14.11 | ||
0.8m | 150.80 | 15.39 | ||
0.7m | 163.36 | 16.67 | ||
0.6m | 175.93 | 17.95 | ||
* Other size can be provided follow client's requirements. |
Features
Buoyancy and Lifting Capacity
Marine rubber airbags provide significant buoyancy and lifting
capacity to support heavy loads during marine operations. The size,
shape, and number of layers of the airbag determine its specific
lifting capacity.
Durability
These airbags are constructed from high-quality rubber materials
that have excellent strength and durability. They are designed to
withstand high pressures, abrasion, punctures, and weathering,
ensuring a long service life.
Versatility
Marine rubber airbags are versatile and can be used in various
marine applications. They are suitable for ship launching and
landing, caisson positioning, salvage operations, pipeline laying,
and more. Their adaptability makes them a useful tool in different
types of marine environments.
Customizability
Airbags can be customized according to specific requirements.
Manufacturers can adjust the size, shape, and number of layers to
meet the unique needs of each marine operation.
Applications
● Ship Launching and Landing
● Caisson Positioning
● Salvage Operations
● Pipeline Laying
Advantages
High Quality Manufacturing
Our factory is equipped with state-of-the-art machinery and adheres
to strict quality control measures. We ensure that each marine
rubber airbag is manufactured to the highest standards, using
premium materials and advanced production techniques.
Customization Capabilities
We offer a wide range of sizes and specifications for marine rubber
airbags. Our experienced engineers can work closely with customers
to provide tailored solutions that meet their specific requirements
and applications.
Excellent Durability
Our marine rubber airbags are designed to withstand harsh marine
conditions, including exposure to seawater, UV radiation, and rough
handling. They have superior resistance to abrasion, puncture, and
aging, ensuring long-lasting performance.
Optimal Performance
The design of our marine rubber airbags is optimized to provide
maximum buoyancy and lifting capacity. We carefully calculate the
airbag parameters to ensure efficient load support, stability, and
safety during operations.
