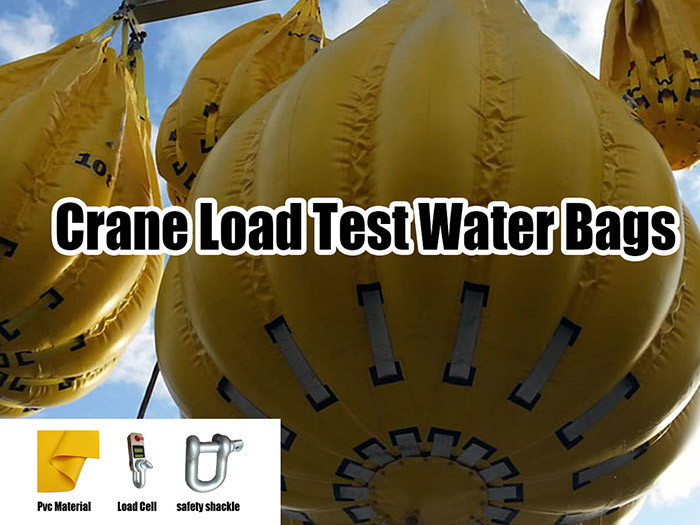

Crane Load Test Water Bags High Strength Pvc Fabric Made From
Durable And Reinforced Pvc For Maximum Safety
Description
Unlike traditional solid weights, our Crane Load Test Water Bags
are lightweight when empty, making them easy to transport, store,
and deploy. Their flexible structure allows for quick setup and
filling, significantly reducing labor and logistical costs. After
testing, they can be drained and folded into compact sizes,
providing a space-saving and efficient solution for load testing
operations.
Specifications
| Application | Proof Load Testing, Offshore Load Testing, Structural Load Testing,
Ship Load Testing, Industrial Equipment Testing, Research and
Development. |
| Content | 100% POLYVINYL CHLORIDE |
| Phthalate | 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65,
CPSIA and REACH) |
| Backing Material Size | 1.8/2.0 Mm X 1.55m, Thickness Produced As Per Your Request. |
| Weight | 37.1 oz square yard/ 1450 +- 50 GSM |
| Special | UV Resistant |
| 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65,
CPSIA and REACH) |
| BPA Free / Tris Free / Formaldehyde Free |
| Does Not Contain Conflict Minerals |
| Care Instructions | Rinse With Fresh Water And Air Dry |
| Do Not Store with Seawater and Keep Away From Heat Sources |
| Available sizes | 5000 kg |
| 8,000 kg |
| 1,0000 kg |
| 15,000 kg |
| 20,000 kg |
| 30,000 kg |
| 50,000 kg |
| 100,000 kg |
| Special sizes could be customized |
| OEM | Supported |
| MODEL | Weight | Volume | Empty Height (Length) | Filled Height (Length) | Max Diam (ø) | Dry Weight without accessories |
| kg | Liters / m3 | m | m | m | kg |
| lbs | USG | ft | ft | ft | lbs |
| HM-1T | 1,000 | 1,000 / 1 | 2.52 | 2.23 | 1.39 | 36 |
| 2,204 | 264 | 8.27 | 7.33 | 4.56 | 80 |
| HM-2T | 2,000 | 2,000 / 2 | 2.87 | 2.6 | 1.65 | 41 |
| 4,409 | 528 | 9.41 | 8.5 | 5.43 | 90 |
| HM-3T | 3,000 | 3,000 / 3 | 3.38 | 2.97 | 1.82 | 50 |
| 6,613 | 792 | 11.11 | 9.75 | 6.0 | 110 |
| HM-4T | 4,000 | 4,000 / 4 | 3.41 | 3.07 | 1.88 | 64 |
| 8,818 | 1,056 | 11.22 | 10.1 | 6.16 | 141 |
| HM-5T | 5,000 | 5,000 / 5 | 4.14 | 3.52 | 2.13 | 80 |
| 11,023 | 1,320 | 13.60 | 11.58 | 7.0 | 176 |
| HM-6T | 6,000 | 6,000 / 6 | 4.39 | 3.91 | 2.28 | 86 |
| 13,227 | 1,585 | 14.41 | 12.83 | 7.48 | 189 |
| HM-8T | 8,000 | 8,000 / 8 | 4.54 | 3.93 | 2.52 | 104 |
| 17,636 | 2,113 | 14.91 | 12.91 | 8.27 | 230 |
| HM-10T | 10,000 | 10,000 / 10 | 5.18 | 4.49 | 2.70 | 130 |
| 22,046 | 2,641 | 17.0 | 14.75 | 8.90 | 286 |
| HM-12.5T | 12,500 | 12,500/ 12.5 | 5.43 | 4.62 | 2.86 | 154 |
| 27,558 | 3,302 | 17.91 | 15.16 | 9.39 | 340 |
| HM-15T | 15,000 | 15,000 / 15 | 6.24 | 5.48 | 2.95 | 159 |
| 33,069 | 3,962 | 20.50 | 18.00 | 9.70 | 350 |
| HM-20T | 20,000 | 20,000 / 20 | 6.78 | 6. 04 | 3.42 | 224 |
| 44,100 | 5,283 | 22.25 | 19.83 | 11.25 | 492 |
| HM-25T | 25,000 | 25,000 / 25 | 7.51 | 6.40 | 3.75 | 315 |
| 55,115 | 6,604 | 24.66 | 21.0 | 12.33 | 695 |
| HM-35T | 35,000 | 35,000 / 35 | 8.07 | 7.11 | 3.91 | 417 |
| 77,161 | 9,246 | 26.50 | 23.33 | 12.83 | 920 |
| HM-40T | 40,000 | 40,000 / 40 | 8.71 | 7.72 | 4.07 | 440 |
| 88,184 | 10,566 | 28.58 | 25.33 | 13.36 | 970 |
| HM-50T | 50,000 | 50,000 / 50 | 8.99 | 7.77 | 4.56 | 544 |
| 110,231 | 13,208 | 29.50 | 25.50 | 14.96 | 1200 |
| HM-100T | 100,000 | 100,000 / 100 | 11.27 | 10.00 | 5.65 | 952 |
| 220,462 | 26,420 | 37.00 | 32.9 | 18.56 | 2100 |
Features
Space Saving Storage
Can be folded into a compact size after use, optimizing storage
efficiency.
Corrosion UV Resistant
Built to withstand marine and industrial conditions, ensuring
long-term reliability.
Customizable Design
Available in different sizes, shapes, and load capacities to meet
specific requirements.
Certified Compliant
Manufactured according to international safety standards such as
ABS, DNV, and LEEA.
Applications
● Offshore Crane Load Testing
● Marine Deck Crane Testing
● Shipyard Hoist Load Verification
Advantages
Fast Efficient Deployment
Quick filling and draining process, minimizing downtime and
improving testing efficiency.
Cost Effective Solution
More affordable than traditional load testing methods, saving
logistics and labor costs.
Versatile Applications
Suitable for crane, davit, hoist, and lifeboat load testing in
marine, offshore, and industrial sectors.
Excellent Load Stability
Even water distribution ensures precise load testing without sudden
weight shifts.
FAQ
1. How do you ensure accuracy in load testing?
We use calibrated flow meters, load cells, and other monitoring
devices to ensure precise weight measurement.
2. Are the water bags easy to store and transport?
Yes, when empty, the water bags are compact and lightweight, making
storage and transportation convenient.
3. What kind of cranes can be tested using water bags?
Our water bags can be used for testing offshore cranes, ship
cranes, overhead cranes, gantry cranes, and more.
4. How long does it take to fill a water bag?
Filling time depends on the bag’s capacity and the pump’s flow
rate, but typically it takes 30–60 minutes for larger bags.
