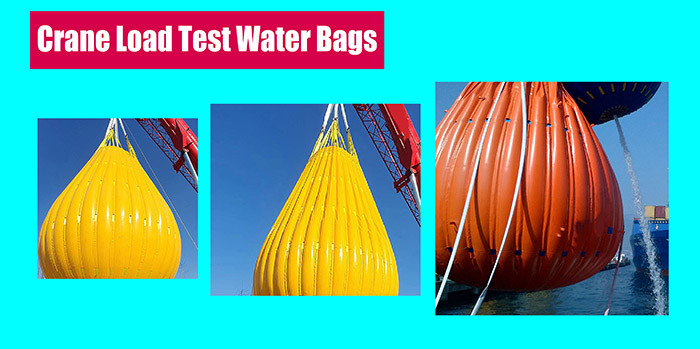

Crane Load Test Water Bags Made From High Strength Tear Resistant
Materials
Description
Our Crane Load Test Water Bags offer an innovative and reliable
method for testing the load capacity of cranes and lifting systems.
These bags are made from heavy-duty, high-strength materials that
ensure durability and safety. Unlike solid weights, they can be
easily transported, stored, and filled with water to achieve the
desired load. The controlled loading process enhances test accuracy
and reduces risks. Ideal for offshore, marine, and industrial
applications, our water bags comply with international testing
standards. Hongruntong Marine provides top-quality load test water
bags for dependable and efficient performance.
Specifications
| Application | Proof Load Testing, Offshore Load Testing, Structural Load Testing,
Ship Load Testing, Industrial Equipment Testing, Research and
Development. |
| Content | 100% POLYVINYL CHLORIDE |
| Phthalate | 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65,
CPSIA and REACH) |
| Backing Material Size | 1.8/2.0 Mm X 1.55m, Thickness Produced As Per Your Request. |
| Weight | 37.1 oz square yard/ 1450 +- 50 GSM |
| Special | UV Resistant |
| 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65,
CPSIA and REACH) |
| BPA Free / Tris Free / Formaldehyde Free |
| Does Not Contain Conflict Minerals |
| Care Instructions | Rinse With Fresh Water And Air Dry |
| Do Not Store with Seawater and Keep Away From Heat Sources |
| Available sizes | 5000 kg |
| 8,000 kg |
| 1,0000 kg |
| 15,000 kg |
| 20,000 kg |
| 30,000 kg |
| 50,000 kg |
| 100,000 kg |
| Special sizes could be customized |
| OEM | Supported |
| MODEL | Weight | Volume | Empty Height (Length) | Filled Height (Length) | Max Diam (ø) | Dry Weight without accessories |
| kg | Liters / m3 | m | m | m | kg |
| lbs | USG | ft | ft | ft | lbs |
| HM-1T | 1,000 | 1,000 / 1 | 2.52 | 2.23 | 1.39 | 36 |
| 2,204 | 264 | 8.27 | 7.33 | 4.56 | 80 |
| HM-2T | 2,000 | 2,000 / 2 | 2.87 | 2.6 | 1.65 | 41 |
| 4,409 | 528 | 9.41 | 8.5 | 5.43 | 90 |
| HM-3T | 3,000 | 3,000 / 3 | 3.38 | 2.97 | 1.82 | 50 |
| 6,613 | 792 | 11.11 | 9.75 | 6.0 | 110 |
| HM-4T | 4,000 | 4,000 / 4 | 3.41 | 3.07 | 1.88 | 64 |
| 8,818 | 1,056 | 11.22 | 10.1 | 6.16 | 141 |
| HM-5T | 5,000 | 5,000 / 5 | 4.14 | 3.52 | 2.13 | 80 |
| 11,023 | 1,320 | 13.60 | 11.58 | 7.0 | 176 |
| HM-6T | 6,000 | 6,000 / 6 | 4.39 | 3.91 | 2.28 | 86 |
| 13,227 | 1,585 | 14.41 | 12.83 | 7.48 | 189 |
| HM-8T | 8,000 | 8,000 / 8 | 4.54 | 3.93 | 2.52 | 104 |
| 17,636 | 2,113 | 14.91 | 12.91 | 8.27 | 230 |
| HM-10T | 10,000 | 10,000 / 10 | 5.18 | 4.49 | 2.70 | 130 |
| 22,046 | 2,641 | 17.0 | 14.75 | 8.90 | 286 |
| HM-12.5T | 12,500 | 12,500/ 12.5 | 5.43 | 4.62 | 2.86 | 154 |
| 27,558 | 3,302 | 17.91 | 15.16 | 9.39 | 340 |
| HM-15T | 15,000 | 15,000 / 15 | 6.24 | 5.48 | 2.95 | 159 |
| 33,069 | 3,962 | 20.50 | 18.00 | 9.70 | 350 |
| HM-20T | 20,000 | 20,000 / 20 | 6.78 | 6. 04 | 3.42 | 224 |
| 44,100 | 5,283 | 22.25 | 19.83 | 11.25 | 492 |
| HM-25T | 25,000 | 25,000 / 25 | 7.51 | 6.40 | 3.75 | 315 |
| 55,115 | 6,604 | 24.66 | 21.0 | 12.33 | 695 |
| HM-35T | 35,000 | 35,000 / 35 | 8.07 | 7.11 | 3.91 | 417 |
| 77,161 | 9,246 | 26.50 | 23.33 | 12.83 | 920 |
| HM-40T | 40,000 | 40,000 / 40 | 8.71 | 7.72 | 4.07 | 440 |
| 88,184 | 10,566 | 28.58 | 25.33 | 13.36 | 970 |
| HM-50T | 50,000 | 50,000 / 50 | 8.99 | 7.77 | 4.56 | 544 |
| 110,231 | 13,208 | 29.50 | 25.50 | 14.96 | 1200 |
| HM-100T | 100,000 | 100,000 / 100 | 11.27 | 10.00 | 5.65 | 952 |
| 220,462 | 26,420 | 37.00 | 32.9 | 18.56 | 2100 |
Features
Space Saving Design
Can be folded and stored compactly when not in use, optimizing
storage space.
Wide Load Capacity Range
Available in various sizes to meet different testing requirements.
Easy to Use Deploy
Quick setup and filling process for efficient load testing
operations.
Enhanced Safety
Reduces sudden impact loads, minimizing risks to cranes and lifting
equipment.
Applications
● Mining and Industrial Crane Testing
● Oil and Gas Platform Lifting Equipment Testing
● Floating Dock Lifting System Verification
● Heavy Equipment Load Simulation
● Military and Defense Crane Load Testing
Advantages
International Certifications
Products comply with global safety and testing standards.
Customizable Solutions
Offers tailored designs and specifications to meet specific
customer needs.
Wide Load Capacity Range
Provides a variety of sizes to accommodate different testing
requirements.
Rapid Production Delivery
Ensures fast manufacturing and timely delivery to customers
worldwide.
FAQ
1. What safety precautions should be taken during testing?
Ensure proper rigging, gradual load application, and follow safety
guidelines to prevent accidents.
2. Are the water bags reusable?
Yes, with proper handling and maintenance, our water bags can be
reused multiple times.
3. How do I store the water bags when not in use?
Once drained and dried, the bags can be folded and stored in a dry,
cool place for future use.
4. Do you provide accessories like shackles and load cells?
Yes, we offer a full range of testing accessories, including
certified shackles, load cells, and lifting gear.
