Brand Name : | Hongruntong Marine |
Model Number : | HM-MRA1.5M*18.0M |
Certification : | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
Price : | US$200 - US$700 |
Payment Terms : | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
Supply Ability : | 1800Pcs Per Month |
Delivery Time : | 5-7 Work Days |

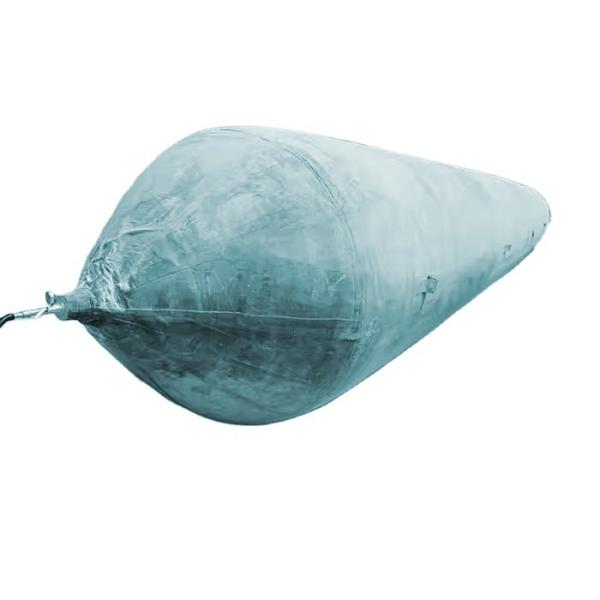

Marine Inflatable Rubber Airbag Marine Ship Launching Air Lift Bag
Description
Marine Rubber Airbags are specialized inflatable rubber products designed for the launching, hauling, and landing of marine vessels. With over 30 years of manufacturing experience, our company offers a range of Marine Rubber Airbags that are built to the highest standards of quality and reliability.
These airbags are constructed using high-strength synthetic-tire-cord layers encased in a tough rubber vulcanization shell, providing superior strength and durability. Our airbags are widely used for ship launching and landing, heavy lifting, salvage, and mobilization of heavy structures.
They are highly versatile, cost-effective, and environmentally friendly, offering a safe and efficient solution for various marine operations. With custom sizes and specifications available, our Marine Rubber Airbags are tailored to meet the unique requirements of each project.
Specifications
Product Name | Marine Inflatable Rubber Airbag Marine Ship Launching Lifting Air Lift Bag |
Keywords | Marine Airbags for Launching |
Material | 100% High Grade Natural Rubber (NR) |
Dimensions | Diameter 0.5m - 3.0m, Length 3.0m - 28.0m, or As Request |
Working Pressure | 0.05-0.25MPA |
Technology | High Pressure, Overall Winding, Explosion-proof |
Metal Parts | Q355 / SS304 / SS316 |
OEM | Supported |
MOQ | 1 |
Repair Tools | Electric Heating Plate, Repair Materials, Glue, Free of Charge |
Standard | ISO14409:2011 |
Certificate | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
Package | Pallets, Wooden Cases |
Service Life | 20 Years |
Warranty | 36 Months |
Diameter | Working Pressure | Working Height | Bearing Capacity | |
KN/m | Ton/m | |||
D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
0.5m | 109.96 | 11.22 | ||
0.4m | 131.95 | 13.46 | ||
D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
0.6m | 113.10 | 11.54 | ||
0.5m | 131.95 | 13.46 | ||
0.4m | 150.80 | 15.39 | ||
D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
0.8m | 109.96 | 11.22 | ||
0.7m | 125.66 | 12.82 | ||
0.6m | 141.37 | 14.43 | ||
0.5m | 157.08 | 16.03 | ||
D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
1.0m | 113.10 | 11.54 | ||
0.9m | 127.33 | 12.98 | ||
0.8m | 141.37 | 14.43 | ||
0.7m | 155.51 | 15.87 | ||
0.6m | 169.65 | 17.31 | ||
D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
1.1m | 113.10 | 11.54 | ||
1.0m | 125.66 | 12.82 | ||
0.9m | 138.23 | 14.11 | ||
0.8m | 150.80 | 15.39 | ||
0.7m | 163.36 | 16.67 | ||
0.6m | 175.93 | 17.95 | ||
* Other size can be provided follow client's requirements. |
Features
Superior Strength and Durability
Our Marine Rubber Airbags are constructed using high-strength
synthetic-tire-cord layers encased in a tough rubber vulcanization
shell, ensuring exceptional durability and reliability in marine
operations.
Versatile Applications
Designed for ship launching and landing, heavy lifting, salvage,
and mobilization of heavy structures, our Marine Rubber Airbags are
highly versatile and can be tailored to meet the unique
requirements of each project.
Cost Effective Solution
As a cost-effective alternative to traditional marine launching
methods, our airbags offer a safe and efficient solution for
various marine operations, saving time and resources.
Environmentally Friendly
Our Marine Rubber Airbags are environmentally friendly and pose
minimal impact on the marine ecosystem, making them a sustainable
choice for marine vessel handling and operations.
Applications

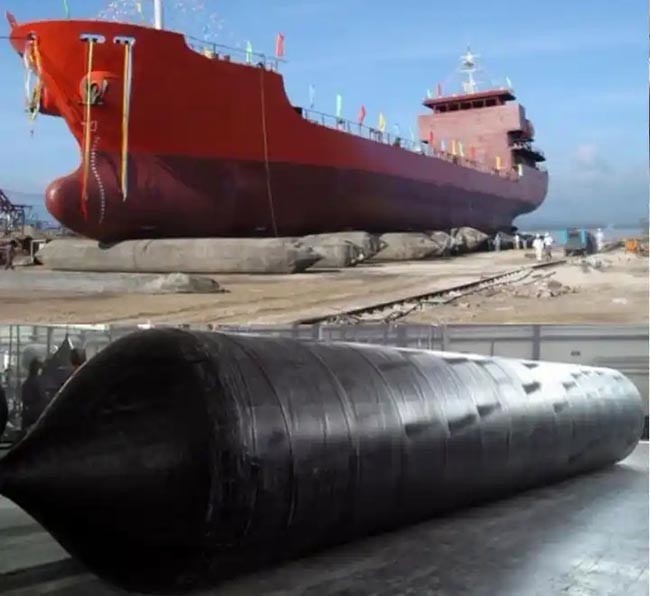

● Ship launching and landing
● Salvage and refloating operations
● Heavy lifting and transportation
● Pipeline and cable laying
● Floating dock and caisson construction
● Underwater installation and repositioning of heavy objects
Advantages
Extensive Manufacturing Experience
With over 30 years of manufacturing experience, our factory has
developed invaluable expertise in the production of Marine Rubber
Airbags. This extensive experience allows us to consistently
deliver top-quality products that meet the highest industry
standards.
Advanced Technology and Equipment
We leverage cutting-edge technology and state-of-the-art equipment
in our manufacturing processes. By staying up-to-date with industry
innovations, we ensure that our Marine Rubber Airbags are equipped
with the latest advancements, guaranteeing superior performance and
durability.
Comprehensive Product Range
We offer a wide range of Marine Rubber Airbags to cater to diverse
customer needs. Our product portfolio includes various sizes, load
capacities, and specifications, allowing us to provide the right
solution for each unique marine application.
Excellent Customer Support
Customer satisfaction is our top priority. We have a dedicated
customer support team that is readily available to assist clients
with any inquiries or concerns. Our prompt and efficient support
ensures a smooth and hassle-free experience for our customers
throughout the entire buying process.
![]() |
