Brand Name : | Hongruntong Marine |
Model Number : | HM-MRA1.5M*18.0M |
Certification : | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
Price : | US$126 - US$439 |
Payment Terms : | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
Supply Ability : | 1766 Pcs Per Month |
Delivery Time : | 5-7 Work Days |
Marine Rubber Airbags Buoyancy Airbags Floating Pipelines Airbags
Description

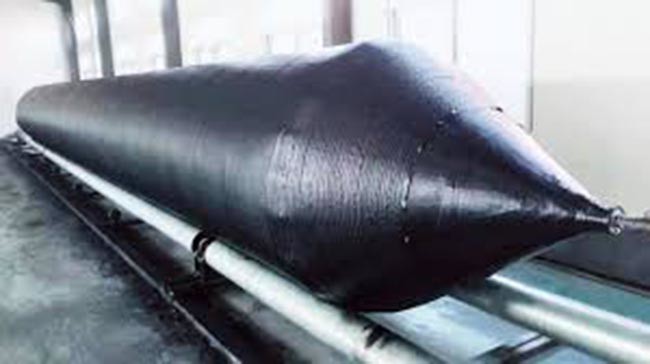

Marine Rubber Airbags, also known as ship launching airbags or marine launching airbags, are innovative and versatile inflatable rubber cylinders used in various marine operations. Designed with a durable rubber casing, these airbags provide a reliable and efficient solution for ship launching, docking, salvage, and heavy lifting.
These airbags are typically used for vessels' initial launching
into the water during shipbuilding, ship repairs, and maintenance,
making the launching process smoother and more convenient. The
airbags offer a high load-bearing capacity, excellent buoyancy, and
strong resistance to abrasion and puncture.
In addition to ship launching, Marine Rubber Airbags also play a
crucial role in vessel salvage operations. They can be placed under
sunken or stranded vessels, inflated with high-pressure air, and
then used to raise the ship off the seabed or other obstructions.
This method is cost-effective, environmentally friendly, and poses
minimal risk to the vessel and surrounding marine ecosystem.
Furthermore, Marine Rubber Airbags are widely used for docking
large vessels, such as bulk carriers, tankers, and cruise ships. By
placing the airbags between the vessel's hull and the dock or
jetty, they provide cushioning and ensure a safe and secure docking
process. These airbags also act as fenders, protecting vessels and
structures from impact during berthing.
Specifications
Product Name | Marine Rubber Airbags Buoyancy Airbags Floating Pipelines Airbags |
Keywords | Marine Airbags for Launching |
Material | 100% High Grade Natural Rubber (NR) |
Dimensions | Diameter 0.5m - 3.0m, Length 3.0m - 28.0m, or As Request |
Working Pressure | 0.05-0.25MPA |
Technology | High Pressure, Overall Winding, Explosion-proof |
Metal Parts | Q355 / SS304 / SS316 |
OEM | Supported |
MOQ | 1 |
Repair Tools | Electric Heating Plate, Repair Materials, Glue, Free of Charge |
Standard | ISO14409:2011 |
Certificate | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
Package | Pallets, Wooden Cases |
Service Life | 20 Years |
Warranty | 36 Months |
Diameter | Working Pressure | Working Height | Bearing Capacity | |
KN/m | Ton/m | |||
D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
0.5m | 109.96 | 11.22 | ||
0.4m | 131.95 | 13.46 | ||
D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
0.6m | 113.10 | 11.54 | ||
0.5m | 131.95 | 13.46 | ||
0.4m | 150.80 | 15.39 | ||
D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
0.8m | 109.96 | 11.22 | ||
0.7m | 125.66 | 12.82 | ||
0.6m | 141.37 | 14.43 | ||
0.5m | 157.08 | 16.03 | ||
D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
1.0m | 113.10 | 11.54 | ||
0.9m | 127.33 | 12.98 | ||
0.8m | 141.37 | 14.43 | ||
0.7m | 155.51 | 15.87 | ||
0.6m | 169.65 | 17.31 | ||
D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
1.1m | 113.10 | 11.54 | ||
1.0m | 125.66 | 12.82 | ||
0.9m | 138.23 | 14.11 | ||
0.8m | 150.80 | 15.39 | ||
0.7m | 163.36 | 16.67 | ||
0.6m | 175.93 | 17.95 | ||
* Other size can be provided follow client's requirements. |
Features
High quality and durable construction
Marine Rubber Airbags are manufactured using premium quality rubber
material that is highly durable and resistant to wear and tear.
This ensures their longevity and reliability, even in harsh marine
conditions.
Reinforced design for heavy load bearing capacity
These airbags are designed with reinforced layers, which
significantly enhance their load-bearing capacity. They are capable
of withstanding extremely heavy loads, making them ideal for ship
launching and lifting operations.
Customizable sizes and specifications
Marine Rubber Airbags are available in a wide range of sizes and
specifications, allowing for customization based on specific
project requirements. This versatility ensures their suitability
for different vessel sizes and weights.
Performance and safety assurance
Marine Rubber Airbags undergo rigorous testing and quality control
processes to ensure superior performance and safety. The products
meet international standards and are certified by reputable
organizations, giving customers confidence in their reliability and
effectiveness.
Applications
● Ship launching
● Ship docking
● Vessel salvaging
● Breakwater construction
● Heavy lifting operations
Advantages
Rich manufacturing experience
With over 30 years of experience in the industry, we have extensive
knowledge and expertise in the production of Marine Rubber Airbags.
Our team has accumulated valuable insights and techniques, ensuring
the highest level of quality and precision in manufacturing.
State of the art facilities and technology
We have invested in modern facilities and advanced technology to
enhance our production processes. This enables us to manufacture
Marine Rubber Airbags with superior performance, durability, and
reliability.
Customization capabilities
We understand that each project may have unique requirements. Our
factory offers customization options, allowing us to tailor Marine
Rubber Airbags to meet specific dimensions, load capacities, and
other project specifications. This ensures optimal performance and
efficiency for our customers.
Quality assurance and certifications
We are committed to delivering products of the highest quality. Our
factory adheres to strict quality control procedures throughout the
manufacturing process. Additionally, our Marine Rubber Airbags meet
international standards and certifications, providing customers
with peace of mind and confidence in our products.
![]() |
