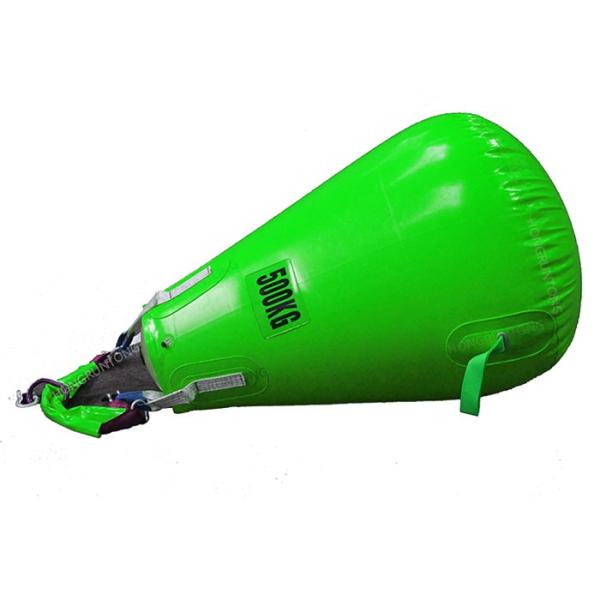

Float Marine Lift Heavy Duty Inflatable Air Bags Underwater Salvage
Description
Heavy Duty Inflatable Air Bags are innovative devices designed to
facilitate marine and industrial operations. Featuring a robust
construction of high-strength rubber and multiple layers of
synthetic fabric, they deliver excellent durability and
load-bearing capacity. Widely used in shipyards, construction
sites, and emergency response scenarios, these air bags provide a
flexible and efficient alternative for lifting and moving heavy
objects. Their ease of use, combined with low maintenance
requirements, makes them a popular choice for engineers and
operators worldwide. By minimizing setup time and operational
complexity, these air bags contribute to streamlined processes and
improved efficiency.
Specifications
| Model | Lifting Capacity | Dimensions | Appr. Weight |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
| Model | Buoyancy | Diameter | Length | Appr. Weight |
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
Model | Capacity | Length | Width |
|---|
Pillow | [kg] | [lbs] | [mm] | [mm] |
|---|
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. |
Features
Lightweight Design
Despite their high lifting capacity, these bags are lightweight,
facilitating transportation and installation. Their buoyant nature
further simplifies handling, even in challenging underwater
environments.
Pressure Resistant
Engineered to handle high-pressure environments, Underwater Air
Lift Bags maintain their structural integrity at significant
depths. This feature is essential for operations conducted in deep
waters, ensuring reliability under challenging conditions.
Environmentally Friendly
These air lift bags are designed to minimize environmental impact.
Made from materials that are resistant to deterioration, they do
not contribute hazardous materials to aquatic ecosystems, making
them a responsible choice for underwater lifting.
Customizable Sizes
Available in multiple sizes and lifting capacities, Underwater Air
Lift Bags can be customized to meet specific project requirements.
This adaptability allows for precise lifting solutions tailored to
individual needs.
Applications
● Raising submerged vehicles
● Aiding underwater archaeological excavations
● Installation of underwater monitoring equipment
● Assisting in the installation of offshore wind turbines
● Raising underwater traps in fishing operations
Advantages
Eco Friendly Materials
We prioritize the use of environmentally friendly materials in our
production processes, minimizing our ecological footprint.
Energy Efficient Manufacturing
Our manufacturing facilities are designed to be energy-efficient,
reducing wastage and conserving resources.
Recyclable Products
Our air lift bags are designed to be recyclable at the end of their
life cycle, contributing to a circular economy.
Sustainable Practices
We continuously seek sustainable production practices to further
enhance our commitment to environmental responsibility.
FAQ
Q1: Are Heavy Duty Inflatable Air Bags safe to use?
A1: Yes, when used according to the manufacturer's guidelines,
Heavy Duty Inflatable Air Bags are safe. Always ensure that the
bags are not overloaded and that safety precautions are followed
during operation.
Q2: What is the weight capacity of your Heavy Duty Inflatable Air
Bags?
A2: We offer a range of Heavy Duty Inflatable Air Bags with varying
weight capacities, typically from a few tons to over 100 tons.
Please refer to the product specifications for detailed capacity
information.
Q3: How are the air bags inflated?
A3: Heavy Duty Inflatable Air Bags can be inflated using a standard
air compressor or a manual pump. Ensure that the air bag is
inflated evenly and to the recommended pressure levels outlined in
the user manual.
Q4: Can these air bags be used for underwater lifting?
A4: Yes, our Heavy Duty Inflatable Air Bags are suitable for
underwater lifting applications. They are designed to operate
effectively in both above and below-water environments.
