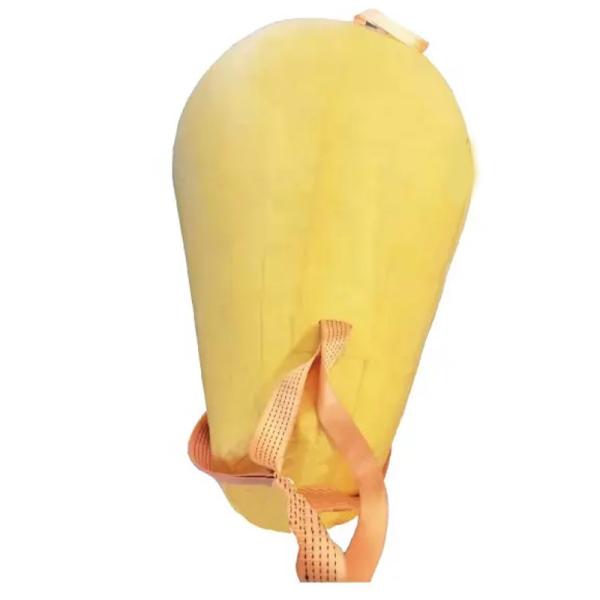

Floating Parachute Heavy Duty Inflatable Air Bags Tear Resistance
Description
Designed for robust applications, Heavy Duty Inflatable Air Bags
provide a practical and economical solution for tasks such as ship
launching, salvage, and heavy object transport. Their multi-layer
structure incorporates premium rubber and reinforced tire cord,
ensuring exceptional tensile strength and resistance to wear. These
air bags can support weights up to several thousand tons, making
them indispensable for industries ranging from shipbuilding to
offshore construction. Their simple yet efficient design reduces
operational costs while ensuring safety and reliability. Portable
and reusable, these air bags are easy to store and transport,
further enhancing their utility in challenging environments.
Specifications
| Model | Lifting Capacity | Dimensions | Appr. Weight |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
| Model | Buoyancy | Diameter | Length | Appr. Weight |
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
Model | Capacity | Length | Width |
|---|
Pillow | [kg] | [lbs] | [mm] | [mm] |
|---|
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. |

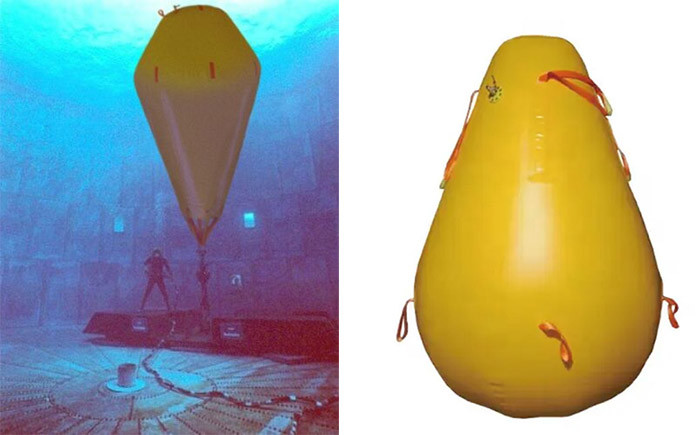

Features
Lightweight and Compact Design
Underwater Air Lift Bags are designed to be lightweight and
compact, making them easy to transport and store. This portability
allows for quick mobilization during underwater projects, ensuring
that operators can efficiently manage equipment without adding
unnecessary bulk to their gear.
High Buoyancy Force
These air lift bags are engineered to provide significant buoyancy,
allowing them to lift heavy underwater objects with ease. The
efficient design maximizes lifting power while minimizing air
consumption, enabling operators to perform extensive lifting tasks
with fewer resources and less effort.
Corrosion Resistance
Equipped with corrosion-resistant coatings, Underwater Air Lift
Bags withstand the harsh conditions of marine environments. This
feature ensures that they maintain their structural integrity over
time, reducing maintenance costs and extending the life of the
equipment, which is essential for long-term underwater operations.
Safe and Reliable
Safety is a top priority for underwater lifting applications, and
these air lift bags are designed with multiple safety features.
They are equipped with emergency release valves and robust seams to
prevent accidental ruptures. This focus on safety ensures peace of
mind for operators, allowing them to carry out their work
confidently.
Applications
● Raising submerged pipelines
● Aquaculture fish pen installation
● Marine debris removal
● Supporting underwater inspections
● Lifting concrete blocks for reef construction
● Assisting in underwater habitat restoration
● Recovery of airplane wreckage
Advantages
Cutting Edge Engineering
We utilize advanced engineering techniques to create efficient and
effective air lift bag designs tailored for optimal performance
underwater.
Research and Developmen
Our commitment to R&D ensures continuous innovation in our
products, enabling us to introduce new features that enhance
functionality.
Customization Capabilities
We offer customized designs to meet specific client requirements,
ensuring our products cater to various underwater scenarios.
Adoption of New Materials
We incorporate the latest materials that improve durability and
buoyancy, staying ahead of competitors in terms of product quality.
FAQ
1. How does your factory do regarding quality control?
A. Quality is priority! Every worker and QC keeps the QC from the
very beginning to the very end:
B. All raw material we used are passed the strength test.
C. Skillful workers care every detail in sewing, printing,
stitching, packing process;
D. Quality control department specially responsible for quality
checking in each process.
2. Can you offer samples by free of charge?
We can offer normal color and thickness samples to you free of
charge. But with freight cost collect. Customized sample can be
sent out after you pay down payment before mass production.
3. Can your factory print my logo on the goods?
Yes, we can print the company logo on the goods or their packing
box.
We usually produce goods based on customer's samples or based on
customers' picture, logo, sizes etc detail information design for
customers.
4. What can I do if I get the goods with bad quality?
A.Take photos of the goods with problem
B.Keep the goods for us
C.Send all your feedback to our sales,our client service team will
help you solve the problem together.If the problem cuased by us,we
will send you replacement in next order.
