Pneumatic Totally Enclosed And Water Air Lift Bags Versatile
Parachute Lift Bags
Description

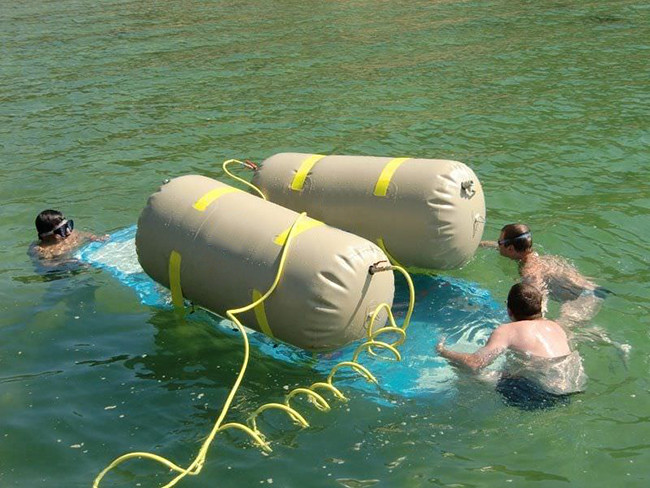

Underwater air lift bags are inflatable devices that are used to
lift or move heavy objects underwater. They rely on compressed air
to achieve lift or buoyancy. They are commonly used in a variety of
applications such as salvage operations, underwater construction,
and offshore oil and gas operations.
The bags are typically made from high strength materials and come
in various sizes and capacities. They are attached to the object to
be lifted and filled with air using a compressor or a diving
cylinder. As the bags inflate, they displace water and create lift,
allowing the object to be moved to the desired location.
Underwater air lift bags are particularly useful in situations
where heavy objects need to be moved or lifted in a confined or
difficult-to-reach space underwater. They can be used in
combination with other equipment such as cranes, rigging, and
winches to achieve the desired result. Additionally, they are often
portable and easy to deploy, making them a popular choice for
emergency response and quick mobilization.
Specifications
| Product Name | Industrial Boat/Ship/Vessel Dock/Marine Underwater Air Lift Air
Bags |
| Raw Material | PVC coating fabric |
| Type | Cylindrical, Parachute, Pillow |
| Size | 500kg, 1000kg, 5000kg 10000kg,etc |
| Thickness | 0.4mm-3mm, or as request |
| Color | Yellow,Blue,Black,etc |
| Density | 0.33-0.9g/cm3 |
| Safety Factor | 7:1 |
Tolerances | +/- 0.03 on densities +/- 0.2 mm on thickness +/- 0 to +3mm on width +/- 0 to +3mm on length |
| Model | Lifting Capacity | Dimensions | Appr. Weight |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
| Model | Buoyancy | Diameter | Length | Appr. Weight |
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
Model | Capacity | Length | Width |
|---|
Pillow | [kg] | [lbs] | [mm] | [mm] |
|---|
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. |
Features
Material
Underwater air lift bags are made from high strength materials that
are resistant to abrasion, puncture, and UV degradation. Common
materials used for making these bags include Nylon, PVC coated
polyester, and urethane-coated nylon.
Lift capacity
The bags come in different sizes and lift capacities ranging from a
few hundred kilograms to several tonnes. The lift capacity of the
bag is determined by its size, shape, and the amount of air
pressure applied.
Inflation system
Underwater air lift bags are inflated using compressed air from a
cylinder or a compressor. Some bags come with an inflation system
that allows them to be inflated remotely.
Attachment points
The bags have multiple attachment points to enable them to be
secured to the object being lifted. The attachment points may be
reinforced with stainless steel rings or other hardware.
Applications
● Salvage operations
● Marine construction
● Diving operations
● Offshore oil and gas industry
Advantages
Unmatched Industry Experience
With over 30 years of manufacturing experience, our factory has
accumulated invaluable knowledge and expertise in the production of
Underwater Air Lift Bags. This extensive experience enables us to
deliver high-quality, reliable products that meet the specific
needs of our customers.
Advanced Technology and Innovation
Our factory stays at the forefront of industry advancements by
incorporating cutting-edge technology and continuous innovation in
our manufacturing processes. This commitment to technological
excellence allows us to produce Underwater Air Lift Bags with
enhanced performance, efficiency, and safety features.
Customization and Tailored Solutions
Leveraging our decades of experience, we have perfected the art of
customization and providing tailored solutions to clients with
unique requirements. Whether it's custom sizes, capacities, or
special features, our factory can deliver Underwater Air Lift Bags
that align precisely with the customer's specifications.
Quality Assurance and Compliance
Quality is at the core of our manufacturing processes, and our
factory adheres to rigorous quality assurance standards to ensure
that every Underwater Air Lift Bag meets the highest industry
benchmarks. Additionally, we prioritize compliance with relevant
regulations and safety guidelines to guarantee the reliability and
performance of our products.
