Underwater Air Lift Bags High Quality Air Lift Bags with Compressor
Description

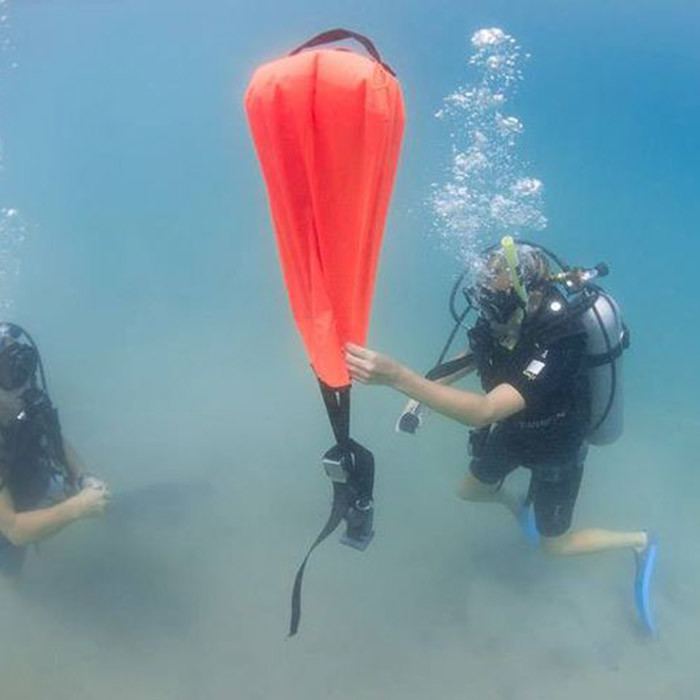

Underwater Air Lift Bags are essential tools used in marine salvage
and underwater lifting operations. Manufactured with high-strength,
durable materials, these inflatable bags are designed to lift heavy
objects and structures from the seabed to the surface with ease.
The bags utilize compressed air to generate buoyancy, providing a
safe and efficient solution for raising sunken vessels, underwater
equipment, or other heavy loads. Their versatility and reliability
make them indispensable in emergency response situations,
underwater construction projects, and shipwreck recoveries.
With varying sizes and lifting capacities available, Underwater Air
Lift Bags are a versatile and effective solution for any marine
lifting challenge.
Specifications
| Product Name | Underwater Air Lift Bags High Quality Air Lift Bags with Compressor |
| Raw Material | Top-Notch PVC Coating Fabric |
| Type | Cylindrical, Parachute, Pillow |
| Size | 500kg, 1000kg, 5000kg 10000kg,etc |
| Thickness | 0.4-1.2mm, or as request |
| Color | Yellow,Blue,Black,etc |
| Density | 0.33-0.9g/cm3 |
| Safety Factor | 7:1 |
| Accessories | Valve, Inflatable Tube, Repair Material |
| OEM | Welcome |
| Warranty | 3 Years |
Tolerances | +/- 0.03 on densities +/- 0.2 mm on thickness +/- 0 to +3mm on width +/- 0 to +3mm on length |
| Model | Lifting Capacity | Dimensions | Appr. Weight |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
| Model | Buoyancy | Diameter | Length | Appr. Weight |
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
Model | Capacity | Length | Width |
|---|
Pillow | [kg] | [lbs] | [mm] | [mm] |
|---|
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. |
Features
High Strength Materials
Underwater Air Lift Bags are constructed with top-quality,
high-strength materials to ensure durability and reliability in
demanding underwater lifting tasks.
Precision Engineering
These bags are meticulously designed and engineered to provide
precise control over buoyancy and lifting operations, showcasing
their professional and specialized approach to underwater lifting
solutions.
Safety Features
Underwater Air Lift Bags incorporate advanced safety features such
as pressure relief valves and reinforced seams, prioritizing the
protection of both the equipment being lifted and the operators
involved in the operation.
Customized Solutions
With a range of sizes and lifting capacities available, these lift
bags offer customized solutions tailored to specific underwater
lifting needs, highlighting their advantage as a professional and
versatile choice for marine salvage and recovery operations.
Applications
● Dock and Harbor Maintenance
● Offshore Oil and Gas Industry
● Marine Archaeology
● Marine Research and Exploration
Advantages
Extensive Industry Experience
With over 30 years of manufacturing experience, we have gained a
deep understanding of the production processes and requirements for
Underwater Air Lift Bags. This long-standing expertise allows us to
deliver high-quality products consistently.
Specialization in Underwater Air Lift Bags
Our factory exclusively focuses on the production of Underwater Air
Lift Bags. This specialization enables us to concentrate our
resources and expertise on refining and perfecting our products,
resulting in superior performance and reliability.
Technological Innovation
We are committed to staying at the forefront of technological
advancements in the industry. By incorporating the latest
innovations into our manufacturing processes, we ensure that our
Underwater Air Lift Bags meet the highest standards in terms of
efficiency, safety, and user-friendliness.
Quality Assurance
Quality is our top priority. We adhere to strict quality control
measures throughout the manufacturing process, including the
careful selection of raw materials, rigorous testing procedures,
and comprehensive inspections. This commitment to quality
guarantees that our Underwater Air Lift Bags are durable,
dependable, and capable of withstanding the demanding conditions
underwater.
