Effective Deployment NR Marine Salvage Lift Air Bags For Marine
Excavation Projects
Description

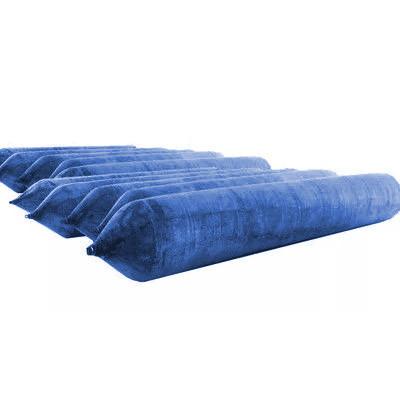

Marine air bags are ideal for lifting and moving large underwater
objects, including boats, pipelines, and industrial equipment.
Constructed with reinforced PVC, these air bags are designed to
handle the harsh conditions of saltwater environments, ensuring
long-term durability and reliable performance. The bags are
equipped with safety features such as overpressure relief valves
and reinforced lifting points for maximum security. For operation,
follow the provided inflation instructions to avoid overloading the
bag. Packaging is secure for transit, and we ensure fast shipping
worldwide. Payments are accepted via bank transfer or L/C, with
easy processing for bulk orders. Returns are accepted for defective
products, and we provide warranty support for any manufacturing
defects.
Specifications
| Product Name | Marine Air Bag |
| Material | 100% High Tensile NR |
| Dimensions | Diameter 0.5m - 3.0m, Length 3.0m - 28.0m, or as Request |
| Working Pressure | 0.05-0.25MPA |
| Technology | Overall Winding, High Pressure, Explosion-proof |
| Metal Parts | Q355 / SS304 / SS316 |
| OEM | Supported |
| MOQ | 1 |
| Repair Tools | Electric Heating Plate, Repair Materials, Glue, Free of Charge |
| Standard | ISO14409:2011 |
| Certificate | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| Package | Pallets, Wooden Cases |
| Service Life | 20 Years |
| Warranty | 36 Months |
| Diameter | Working Pressure | Working Height | Bearing Capacity |
| KN/m | Ton/m |
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 |
| 0.4m | 131.95 | 13.46 |
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 |
| 0.5m | 131.95 | 13.46 |
| 0.4m | 150.80 | 15.39 |
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 |
| 0.7m | 125.66 | 12.82 |
| 0.6m | 141.37 | 14.43 |
| 0.5m | 157.08 | 16.03 |
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 |
| 0.9m | 127.33 | 12.98 |
| 0.8m | 141.37 | 14.43 |
| 0.7m | 155.51 | 15.87 |
| 0.6m | 169.65 | 17.31 |
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 |
| 1.0m | 125.66 | 12.82 |
| 0.9m | 138.23 | 14.11 |
| 0.8m | 150.80 | 15.39 |
| 0.7m | 163.36 | 16.67 |
| 0.6m | 175.93 | 17.95 |
| * Other size can be provided follow client's requirements. |
Features
Rapid Deployment
Marine air bags can be quickly inflated, allowing for rapid
response in emergency situations and minimizing system downtime.
Cost Effective Solution
They provide a cost-effective alternative to traditional lifting
equipment, such as cranes, reducing overall project expenses.
Non Damaging Lifting
The inflatable nature of air bags ensures a gentle lifting process
that minimizes the risk of damage to sensitive surfaces of the
vessels or structures being lifted.
Customizable Sizes
Available in various sizes and configurations, marine air bags can
be tailored to meet specific project requirements, providing
tailored solutions for different applications.
Applications
● Marine excavation projects
● Construction site dewatering
● Underwater object stabilization
● Emergency response and rescue operations
● Floating of concrete foundations for underwater structures
● Subsea lifting for marine archaeology
Advantages
Advanced Production Techniques
We use cutting-edge manufacturing processes and equipment to create
high-performance Marine Air Bags with superior strength,
flexibility, and reliability.
Strict Quality Control
Our products undergo rigorous quality checks at every stage of
production to ensure they meet or exceed international standards
for safety and performance.
Global Shipping Capabilities
We offer worldwide shipping with secure packaging and reliable
logistics, ensuring that our Marine Air Bags reach clients quickly
and safely.
Competitive Pricing
By leveraging our extensive experience and large-scale production,
we are able to offer cost-effective solutions without compromising
on product quality.
FAQ
1. How do I know which size Marine Air Bag I need?
Our team can assist you in selecting the appropriate size based on
the weight of the object to be lifted and the depth of the
operation.
2. What is the maximum depth at which I can use a Marine Air Bag?
Marine Air Bags are suitable for use in depths of up to 300 meters
or more, depending on the bag’s specifications.
3. What are the safety features of Marine Air Bags?
Marine Air Bags include overpressure relief valves, reinforced
lifting points, and multiple inflation ports for safe, controlled
operation.
4. Can Marine Air Bags be used in rough sea conditions?
Yes, they are designed to withstand rough sea conditions and
provide stability during lifting in unpredictable environments.
