Heavy Duty Inflatable Air Bags Underwater Salvage Air Bags for
Marine Salvage
Description
In the world of heavy lifting, efficiency and safety are paramount.
Our Heavy Duty Inflatable Air Bags provide an unparalleled lifting
solution that combines high load capacity, swift operation, and
exceptional durability. With the ability to lift up to 15 tons,
these air bags are engineered to handle even the most demanding
applications, including construction sites and automotive repairs.
The high load capacity not only ensures the ability to maneuver
heavy machinery but also enhances workplace safety.
One of the standout features of our inflatable air bags is the
quick inflation and deflation process. Designed for rapid
deployment, these air bags can be inflated within minutes using any
standard air compressor, allowing for timely responses in critical
situations. Moreover, the innovative design ensures that they can
be easily deflated and stored compactly when not in use, maximizing
convenience for operators.
Constructed from high quality, resistant materials, these air bags
withstand significant wear and puncture risks. The reinforced
rubberized fabric provides exceptional durability, ensuring that
these air bags maintain their integrity over time, even under the
stress of heavy lifting. When it comes to reliable lifting
solutions, our Heavy Duty Inflatable Air Bags stand as a robust
option for operators seeking efficiency without compromising
safety.
Specifications
| Model | Lifting Capacity | Dimensions | Appr. Weight |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. |

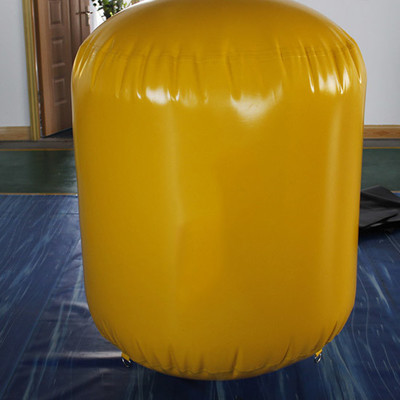

| Model | Buoyancy | Diameter | Length | Appr. Weight |
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
Model | Capacity | Length | Width |
|---|
Pillow | [kg] | [lbs] | [mm] | [mm] |
|---|
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. |
Features
Exceptional Load Capacity
Designed for heavy duty applications, each air bag can lift loads
of up to 15 tons, making them perfect for a wide range of
industrial uses.
Rapid Deployment
The air bags can be inflated within minutes using a standard air
compressor, ensuring quick readiness for immediate lifting
requirements.
User Friendly Operation
Equipped with intuitive valves, these air bags are easy to operate,
allowing even untrained personnel to deploy them safely and
effectively.
Durable Construction
Manufactured from high quality, reinforced rubberized materials,
these air bags are built to withstand the rigors of heavy lifting
without compromising performance.

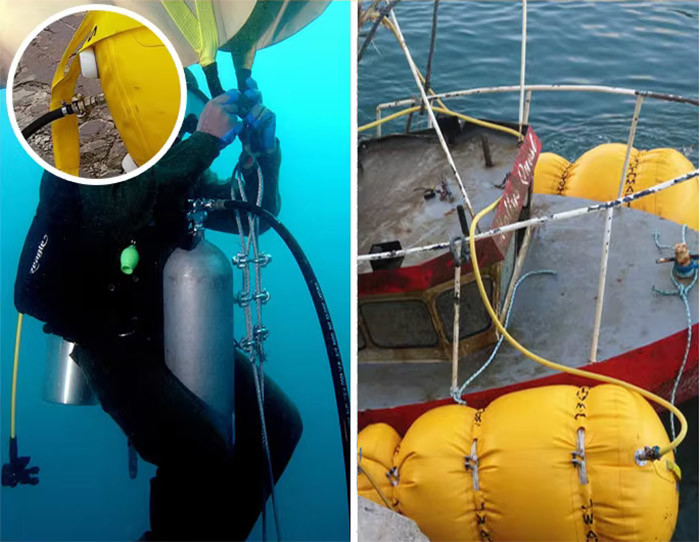

Applications
● Salvaging sunken boats
● Recovering underwater equipment
● Lifting submerged vehicles
● Refloating sunken barges
● Raising shipwrecks
● Performing underwater construction
● Lifting pipelines
Advantages
Advanced Manufacturing Techniques
Our factory employs state-of-the-art manufacturing technologies and
techniques, ensuring that our Heavy Duty Inflatable Air Bags are
produced with precision and consistency. This commitment to
innovation allows us to maintain high-quality standards while
maximizing efficiency.
Expert Craftsmanship
With over 30 years of manufacturing experience, our skilled
technicians possess extensive knowledge and expertise in the
production process. Their attention to detail and dedication to
quality control result in air bags that are both reliable and
durable, meeting the diverse needs of our clients.
Robust Material Selection
We utilize premium grade materials that are specifically designed
to withstand extreme conditions, enhancing the durability and
longevity of our Heavy Duty Inflatable Air Bags. Our rigorous
material testing ensures that our products perform effectively
under challenging circumstances.
Custom Design Capabilities
Understanding that different applications require tailored
solutions, our factory offers custom design options for our
inflatable air bags. Our engineering team collaborates closely with
clients to develop specialized products that meet their unique
specifications and performance requirements.
FAQ
Q1: How can I purchase Heavy Duty Inflatable Air Bags from your
company?
A1: You can purchase our air bags directly through our website or
by contacting our sales team. We are happy to provide personalized
quotations based on your needs and assist with product selection.
Q2: Do you offer discounts for bulk purchases?
A2: Yes, we offer competitive pricing and potential discounts for
bulk purchases. Please contact our sales team to discuss your
requirements, and we will provide a tailored quote based on your
order volume.
Q3: What is your typical lead time for orders?
A3: Lead times may vary based on the size and quantity of the
order. Standard orders usually take around 2-4 weeks for
processing, while custom orders may take longer. We will provide
you with an estimated timeline at the time of order confirmation.
Q4: What is your return policy for Heavy Duty Inflatable Air Bags?
A4: We stand behind the quality of our products. If you receive a
damaged or defective air bag, please contact us within a specified
period for an exchange or return. For products that do not meet
your needs, please refer to our return policy for guidance on
eligibility and procedures.
