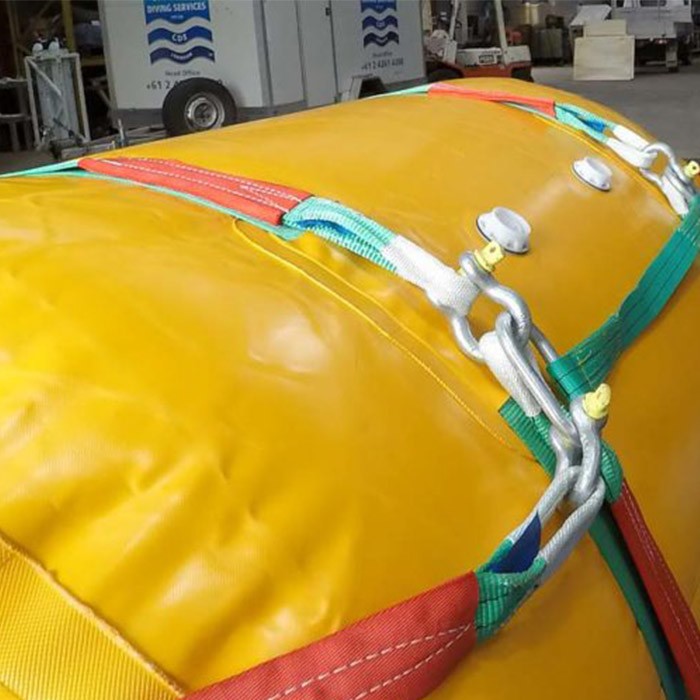

Heavy Duty Inflatable Air Bags Enclosed Buoyancy Support Inflatable
Folding Air Lift Bag
Description
When it comes to heavy lifting solutions, nothing compares to the
advantages offered by Heavy Duty Inflatable Air Bags. With an
outstanding load capacity that can reach up to 15 tons, they are
designed to tackle the toughest lifting challenges across various
industries from construction to automotive.
What truly sets these air bags apart is their easy and fast
inflation and deflation process. Using an air compressor, operators
can inflate the bags in minutes. This quick turnaround is crucial
during time-sensitive operations, allowing teams to respond rapidly
to changing conditions on-site. The convenience of rapid deployment
can significantly impact productivity, especially in high-pressure
environments.
Equally important is the air bags' durability. Constructed from
high-grade materials, they are built to resist wear and puncture
risks. This means you can rely on their performance over time
without the frequent need for replacement. In summary, if you are
looking for a heavy lifting solution that combines impressive
capacity, quick operation, and durability, then Heavy Duty
Inflatable Air Bags should be your go-to choice for all lifting
needs.
Specifications
| Model | Lifting Capacity | Dimensions | Appr. Weight |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
| Model | Buoyancy | Diameter | Length | Appr. Weight |
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
Model | Capacity | Length | Width |
|---|
Pillow | [kg] | [lbs] | [mm] | [mm] |
|---|
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. |
Features
Proven Performance
With a successful track record in multiple salvage operations
around the world, these bags have earned a reputation for
reliability.
Compatibility with Other Equipment
Designed to work seamlessly with other salvage and recovery tools,
enhancing overall operational capabilities.
Environmentally Friendly
Constructed with environmentally safe materials that reduce impact
on marine ecosystems during operation.
Applications
● Pipeline Lifting
● Shipwreck Recovery
● Offshore Rig Maintenance
● Underwater Equipment Transport
● Aquatic Research Projects
Advantages
Environmental Responsibility
Our commitment to using eco friendly materials and adopting
sustainable manufacturing practices aligns with growing consumer
demands for environmentally responsible production, differentiating
us from less compliant manufacturers.
Market Leadership
Our storied history and reputation in the industry position us as a
trusted leader, providing us with credibility that newer or less
recognized manufacturers cannot match.
Comprehensive Support Services
We offer extensive customer support, including training, product
guidance, and after-sales service, ensuring our clients have the
resources they need for optimal use of our products.
Proven Track Record
The reliability and performance of our inflatable air bags are
supported by a long history of successful deployments across
various sectors, showcasing a level of trust not easily matched by
newer companies.
FAQ
1. What are Heavy Duty Inflatable Air Bags?
Heavy Duty Inflatable Air Bags are versatile inflatable devices
designed for lifting, moving, and supporting heavy objects in
various applications, such as marine salvage, construction, and
emergency rescue operations.
2. What materials are used to manufacture these air bags?
Our Heavy Duty Inflatable Air Bags are made from high-grade
materials such as reinforced PVC, neoprene, and polyurethane. These
materials provide excellent durability, abrasion resistance, and
environmental protection.
3. How much weight can these air bags lift?
The lifting capacity of Heavy Duty Inflatable Air Bags varies
depending on their size and model. We offer a range of sizes with
lifting capacities from several hundred pounds to several tons.
Please consult the specifications for each model to determine its
lifting capacity.
4. Are the air bags suitable for underwater use?
Yes, our Heavy Duty Inflatable Air Bags are designed for both
above-water and underwater applications. They are optimized to
operate effectively in saltwater and freshwater environments.
