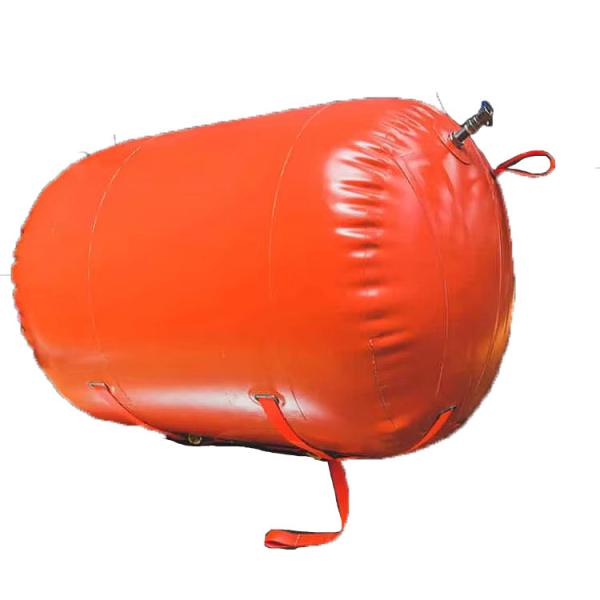

Cylindrical Salvage Heavy Duty Inflatable Air Bags Airbag for
Marine
Description
Welcome to the user guide for Heavy Duty Inflatable Air Bags! These
air bags are designed for those who require a safe and efficient
method for lifting heavy loads in various environments. With the
capability to lift up to 15 tons, they are unmatched in their
performance across industries ranging from construction to
automotive repair.
The quick inflation and deflation features are one of the main
highlights of these air bags. Users can achieve full operation in
mere minutes, making them perfect for scenarios that demand prompt
action. Whether you’re tackling a recovery operation or managing a
busy construction site, these air bags will save you valuable time
and effort.
Quality is at the heart of our product. Made from durable materials
that resist punctures and wear, these air bags are built to last.
You can depend on their integrity, so your lifting needs are met
with confidence. We encourage you to utilize this guide to maximize
your experience with Heavy Duty Inflatable Air Bags and to
understand why they are the preferred choice for heavy lifting.
Specifications
| Model | Lifting Capacity | Dimensions | Appr. Weight |
| Parachute | [kg] | [lbs] | [mm] | [kg] |
| HM-P01 | 200 | 441 | 800 | 5 |
| HM-P02 | 500 | 1,103 | 1,000 | 8 |
| HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
| HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
| HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
| HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
| HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
| HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
| HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
| HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
| HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
| HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
| HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
| HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
| HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
| HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
| Model | Buoyancy | Diameter | Length | Appr. Weight |
| Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] |
| HM-C01 | 200 | 441 | 500 | 1,000 | 5 |
| HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 |
| HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 |
| HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 |
| HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 |
| HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 |
| HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 |
| HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 |
| HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 |
| HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 |
| HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 |
| HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 |
| HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 |
| HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 |
| HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 |
| HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 |
| *Note: Other sizes can be customized according to the requirements. |
Model | Capacity | Length | Width |
|---|
Pillow | [kg] | [lbs] | [mm] | [mm] |
|---|
| HM-P100 | 100 | 220 | 1,020 | 760 |
| HM-P250 | 250 | 550 | 1,320 | 820 |
| HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
| HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
| HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
| HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
| HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
| *Note: Other sizes can be customized according to the requirements. |
Features
High Buoyancy Capacity
Designed to provide excellent lift, these bags can support large
and heavy vessels, ensuring effective salvage operations.
Durable Construction
Made from heavy-duty, tear-resistant materials, our buoyancy bags
withstand harsh marine environments and rugged handling.
UV Resistance
Built to resist degradation from UV exposure, ensuring a longer
lifespan even in direct sunlight.
Shape Retention
The bags maintain their shape under load, providing consistent
buoyancy and stability during lifting operations.
Applications
● Marine Salvage Operations
● Wreck Recovery
● Boat Raising and Recovery
● Underwater Salvage
Advantages
Over 30 Years of Expertise
With three decades of focused manufacturing experience, we have
honed our skills, knowledge, and techniques in producing
high-quality inflatable air bags. This extensive background allows
us to understand the nuances of material selection, production
processes, and product performance, ensuring that we deliver
reliable and durable solutions.
State of the Art Production Techniques
Our factory utilizes modern manufacturing technologies and
machinery, which enhances precision and efficiency in production.
Continuous investment in innovation allows us to develop
cutting-edge design features and maintain high standards of
quality.
Tailored Solutions for Diverse Needs
We offer a wide range of customization options, allowing clients to
specify dimensions, load capacities, and features based on their
unique requirements. This flexibility ensures that our products can
effectively meet various operational demands across different
industries.
Stringent Quality Control Measures
Our commitment to quality is reflected in rigorous testing and
quality assurance protocols throughout the manufacturing process.
We adhere to international safety standards, providing customers
with confidence in the reliability and performance of our Heavy
Duty Inflatable Air Bags.
FAQ
1. What are Heavy Duty Inflatable Air Bags?
Heavy Duty Inflatable Air Bags are versatile inflatable devices
designed for lifting, moving, and supporting heavy objects in
various applications, such as marine salvage, construction, and
emergency rescue operations.
2. What materials are used to manufacture these air bags?
Our Heavy Duty Inflatable Air Bags are made from high-grade
materials such as reinforced PVC, neoprene, and polyurethane. These
materials provide excellent durability, abrasion resistance, and
environmental protection.
3. How much weight can these air bags lift?
The lifting capacity of Heavy Duty Inflatable Air Bags varies
depending on their size and model. We offer a range of sizes with
lifting capacities from several hundred pounds to several tons.
Please consult the specifications for each model to determine its
lifting capacity.
4. Are the air bags suitable for underwater use?
Yes, our Heavy Duty Inflatable Air Bags are designed for both
above-water and underwater applications. They are optimized to
operate effectively in saltwater and freshwater environments.
