Rapid Drainage System Water Weight Bag Compatible With Various
Testing Equipment And Setups
Description

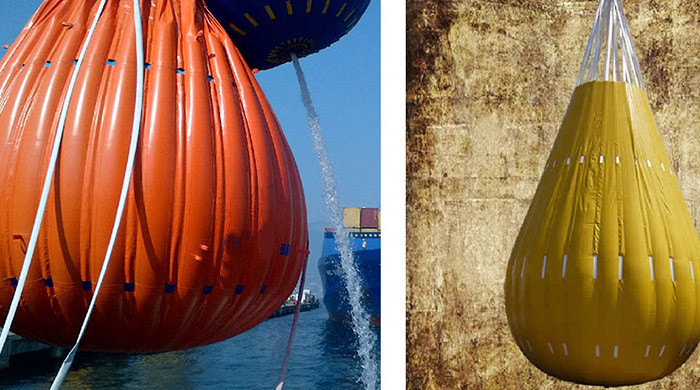

Hongruntong Marine’s Water Weight Bag is designed for accurate and
safe load testing of cranes, winches, lifeboats, and offshore
lifting equipment. Constructed from high-strength PVC-coated
fabric, it offers exceptional durability, UV resistance, and
minimal maintenance. The bag’s flexible and lightweight structure
allows for easy transport, handling, and setup.
With a gradual filling mechanism, our Water Weight Bags enable
controlled load application, ensuring precise and safe testing. Our
products meet international safety standards, backed by Hongruntong
Marine’s 30+ years of experience in advanced marine engineering
solutions.
Specifications
| Application | Proof Load Testing, Offshore Load Testing, Structural Load Testing,
Ship Load Testing, Industrial Equipment Testing, Research and
Development. |
| Content | 100% POLYVINYL CHLORIDE |
| Phthalate | 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65,
CPSIA and REACH) |
| Backing Material Size | 1.8/2.0 Mm X 1.55m, Thickness Produced As Per Your Request. |
| Weight | 37.1 oz square yard/ 1450 +- 50 GSM |
| Special | UV Resistant |
| 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65,
CPSIA and REACH) |
| BPA Free / Tris Free / Formaldehyde Free |
| Does Not Contain Conflict Minerals |
| Care Instructions | Rinse With Fresh Water And Air Dry |
| Do Not Store with Seawater and Keep Away From Heat Sources |
| Available sizes | 5000 kg |
| 8,000 kg |
| 1,0000 kg |
| 15,000 kg |
| 20,000 kg |
| 30,000 kg |
| 50,000 kg |
| 100,000 kg |
| Special sizes could be customized |
| OEM | Supported |
| MODEL | Weight | Volume | Empty Height (Length) | Filled Height (Length) | Max Diam (ø) | Dry Weight without accessories |
| kg | Liters / m3 | m | m | m | kg |
| lbs | USG | ft | ft | ft | lbs |
| HM-1T | 1,000 | 1,000 / 1 | 2.52 | 2.23 | 1.39 | 36 |
| 2,204 | 264 | 8.27 | 7.33 | 4.56 | 80 |
| HM-2T | 2,000 | 2,000 / 2 | 2.87 | 2.6 | 1.65 | 41 |
| 4,409 | 528 | 9.41 | 8.5 | 5.43 | 90 |
| HM-3T | 3,000 | 3,000 / 3 | 3.38 | 2.97 | 1.82 | 50 |
| 6,613 | 792 | 11.11 | 9.75 | 6.0 | 110 |
| HM-4T | 4,000 | 4,000 / 4 | 3.41 | 3.07 | 1.88 | 64 |
| 8,818 | 1,056 | 11.22 | 10.1 | 6.16 | 141 |
| HM-5T | 5,000 | 5,000 / 5 | 4.14 | 3.52 | 2.13 | 80 |
| 11,023 | 1,320 | 13.60 | 11.58 | 7.0 | 176 |
| HM-6T | 6,000 | 6,000 / 6 | 4.39 | 3.91 | 2.28 | 86 |
| 13,227 | 1,585 | 14.41 | 12.83 | 7.48 | 189 |
| HM-8T | 8,000 | 8,000 / 8 | 4.54 | 3.93 | 2.52 | 104 |
| 17,636 | 2,113 | 14.91 | 12.91 | 8.27 | 230 |
| HM-10T | 10,000 | 10,000 / 10 | 5.18 | 4.49 | 2.70 | 130 |
| 22,046 | 2,641 | 17.0 | 14.75 | 8.90 | 286 |
| HM-12.5T | 12,500 | 12,500/ 12.5 | 5.43 | 4.62 | 2.86 | 154 |
| 27,558 | 3,302 | 17.91 | 15.16 | 9.39 | 340 |
| HM-15T | 15,000 | 15,000 / 15 | 6.24 | 5.48 | 2.95 | 159 |
| 33,069 | 3,962 | 20.50 | 18.00 | 9.70 | 350 |
| HM-20T | 20,000 | 20,000 / 20 | 6.78 | 6. 04 | 3.42 | 224 |
| 44,100 | 5,283 | 22.25 | 19.83 | 11.25 | 492 |
| HM-25T | 25,000 | 25,000 / 25 | 7.51 | 6.40 | 3.75 | 315 |
| 55,115 | 6,604 | 24.66 | 21.0 | 12.33 | 695 |
| HM-35T | 35,000 | 35,000 / 35 | 8.07 | 7.11 | 3.91 | 417 |
| 77,161 | 9,246 | 26.50 | 23.33 | 12.83 | 920 |
| HM-40T | 40,000 | 40,000 / 40 | 8.71 | 7.72 | 4.07 | 440 |
| 88,184 | 10,566 | 28.58 | 25.33 | 13.36 | 970 |
| HM-50T | 50,000 | 50,000 / 50 | 8.99 | 7.77 | 4.56 | 544 |
| 110,231 | 13,208 | 29.50 | 25.50 | 14.96 | 1200 |
| HM-100T | 100,000 | 100,000 / 100 | 11.27 | 10.00 | 5.65 | 952 |
| 220,462 | 26,420 | 37.00 | 32.9 | 18.56 | 2100
|
Features
Compact and Lightweight
Easily foldable and transportable, reducing logistics costs and
improving efficiency.
Abrasion & Puncture Resistance
Built to withstand harsh underwater conditions, including rocks,
debris, and marine life.
High Visibility Colors
Enhances diver safety and underwater operation visibility.
Reinforced Seams Welds
Ensures structural integrity and leak-proof performance under
high-pressure conditions.
Applications
● Yacht stability testing
● Ferry load assessment
● Cargo ship stability testing
● Floating hotel load testing
Advantages
Rigorous Testing
Every bag undergoes stringent quality control tests to ensure
reliability and safety.
Innovative Designs
Continuous development of innovative designs that optimize
functionality and user experience.
Competitive Pricing
Offering cost-effective solutions without compromising on quality.
Quick Turnaround Times
Efficient production processes to ensure timely delivery of orders.
FAQ
1. What industries use Water Weight Bags?
Marine, construction, aerospace, renewable energy, and industrial
sectors.
2. Can Water Weight Bags be used for marine testing?
Yes, they are ideal for ship stability testing, offshore platform
assessments, and barge load verification.
3. Are Water Weight Bags suitable for crane testing?
Absolutely, they are commonly used for crane certification and load
capacity testing.
4. Can they be used for structural testing?
Yes, they are used for testing bridges, roofs, floors, and other
structures.
5. Are Water Weight Bags used in renewable energy projects?
Yes, they are used for testing wind turbines, floating solar
panels, and wave energy converters.
