High Durability Water Weight Bag Enhances Overall Testing
Reliability And Safety
Description

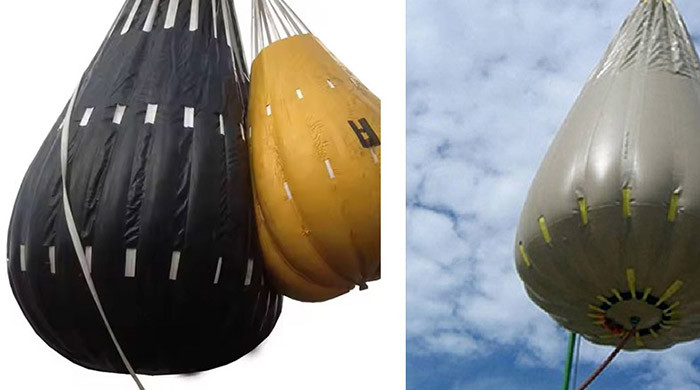

Hongruntong Marine’s Water Weight Bags are engineered for safe and
efficient load testing across a variety of applications, including
cranes, davits, and offshore lifting equipment. Made from
high-strength PVC or TPU materials, our bags ensure exceptional
durability, leak resistance, and ease of handling. With a compact
design when empty, they offer a lightweight and cost-effective
solution compared to traditional solid weights.
Our certified and thoroughly tested Water Weight Bags provide
precision load testing with controlled filling and drainage,
reducing risks and enhancing efficiency. Hongruntong Marine’s 30+
years of expertise in marine safety and lifting solutions
guarantees superior product quality, reliability, and compliance
with international standards.
Specifications
| Application | Proof Load Testing, Offshore Load Testing, Structural Load Testing,
Ship Load Testing, Industrial Equipment Testing, Research and
Development. |
| Content | 100% POLYVINYL CHLORIDE |
| Phthalate | 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65,
CPSIA and REACH) |
| Backing Material Size | 1.8/2.0 Mm X 1.55m, Thickness Produced As Per Your Request. |
| Weight | 37.1 oz square yard/ 1450 +- 50 GSM |
| Special | UV Resistant |
| 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65,
CPSIA and REACH) |
| BPA Free / Tris Free / Formaldehyde Free |
| Does Not Contain Conflict Minerals |
| Care Instructions | Rinse With Fresh Water And Air Dry |
| Do Not Store with Seawater and Keep Away From Heat Sources |
| Available sizes | 5000 kg |
| 8,000 kg |
| 1,0000 kg |
| 15,000 kg |
| 20,000 kg |
| 30,000 kg |
| 50,000 kg |
| 100,000 kg |
| Special sizes could be customized |
| OEM | Supported |
| MODEL | Weight | Volume | Empty Height (Length) | Filled Height (Length) | Max Diam (ø) | Dry Weight without accessories |
| kg | Liters / m3 | m | m | m | kg |
| lbs | USG | ft | ft | ft | lbs |
| HM-1T | 1,000 | 1,000 / 1 | 2.52 | 2.23 | 1.39 | 36 |
| 2,204 | 264 | 8.27 | 7.33 | 4.56 | 80 |
| HM-2T | 2,000 | 2,000 / 2 | 2.87 | 2.6 | 1.65 | 41 |
| 4,409 | 528 | 9.41 | 8.5 | 5.43 | 90 |
| HM-3T | 3,000 | 3,000 / 3 | 3.38 | 2.97 | 1.82 | 50 |
| 6,613 | 792 | 11.11 | 9.75 | 6.0 | 110 |
| HM-4T | 4,000 | 4,000 / 4 | 3.41 | 3.07 | 1.88 | 64 |
| 8,818 | 1,056 | 11.22 | 10.1 | 6.16 | 141 |
| HM-5T | 5,000 | 5,000 / 5 | 4.14 | 3.52 | 2.13 | 80 |
| 11,023 | 1,320 | 13.60 | 11.58 | 7.0 | 176 |
| HM-6T | 6,000 | 6,000 / 6 | 4.39 | 3.91 | 2.28 | 86 |
| 13,227 | 1,585 | 14.41 | 12.83 | 7.48 | 189 |
| HM-8T | 8,000 | 8,000 / 8 | 4.54 | 3.93 | 2.52 | 104 |
| 17,636 | 2,113 | 14.91 | 12.91 | 8.27 | 230 |
| HM-10T | 10,000 | 10,000 / 10 | 5.18 | 4.49 | 2.70 | 130 |
| 22,046 | 2,641 | 17.0 | 14.75 | 8.90 | 286 |
| HM-12.5T | 12,500 | 12,500/ 12.5 | 5.43 | 4.62 | 2.86 | 154 |
| 27,558 | 3,302 | 17.91 | 15.16 | 9.39 | 340 |
| HM-15T | 15,000 | 15,000 / 15 | 6.24 | 5.48 | 2.95 | 159 |
| 33,069 | 3,962 | 20.50 | 18.00 | 9.70 | 350 |
| HM-20T | 20,000 | 20,000 / 20 | 6.78 | 6. 04 | 3.42 | 224 |
| 44,100 | 5,283 | 22.25 | 19.83 | 11.25 | 492 |
| HM-25T | 25,000 | 25,000 / 25 | 7.51 | 6.40 | 3.75 | 315 |
| 55,115 | 6,604 | 24.66 | 21.0 | 12.33 | 695 |
| HM-35T | 35,000 | 35,000 / 35 | 8.07 | 7.11 | 3.91 | 417 |
| 77,161 | 9,246 | 26.50 | 23.33 | 12.83 | 920 |
| HM-40T | 40,000 | 40,000 / 40 | 8.71 | 7.72 | 4.07 | 440 |
| 88,184 | 10,566 | 28.58 | 25.33 | 13.36 | 970 |
| HM-50T | 50,000 | 50,000 / 50 | 8.99 | 7.77 | 4.56 | 544 |
| 110,231 | 13,208 | 29.50 | 25.50 | 14.96 | 1200 |
| HM-100T | 100,000 | 100,000 / 100 | 11.27 | 10.00 | 5.65 | 952 |
| 220,462 | 26,420 | 37.00 | 32.9 | 18.56 | 2100
|
Features
High Strength Materials
Constructed from heavy-duty, reinforced PVC or TPU for maximum
durability and performance.
Superior Buoyancy Control
Designed for precise lifting, positioning, and salvage operations
in underwater environments.
Multiple Configurations
Available in enclosed, open-bottom, and cylindrical designs to suit
various applications.
High Load Capacity
Engineered to handle heavy lifting tasks with excellent
weight-to-buoyancy ratios.
Applications
● Pontoon load capacity testing
● Floating solar panel testing
● Hydraulic press calibration
● Elevator load testing
Advantages
Extensive Experience
Over 30 years of experience in producing water weight bags, leading
to in-depth industry knowledge and skills.
High Quality Materials
Utilization of premium, durable materials that ensure longevity and
performance under different conditions.
Custom Manufacturing
Ability to provide customized sizes and specifications to meet
diverse client needs.
Advanced Technology
Employment of cutting edge manufacturing techniques to enhance
product quality and efficiency.
FAQ
1. What is a Water Weight Bag?
A Water Weight Bag is a flexible container filled with water, used
for load testing and stability assessments in various industries.
2. How does a Water Weight Bag work?
It is filled with water to a specific weight, providing a
controlled and adjustable load for testing purposes.
3. What are the advantages of using Water Weight Bags?
They are cost-effective, reusable, easy to transport, and provide
precise load measurements.
4. What materials are Water Weight Bags made from?
They are typically made from durable, UV-resistant, and waterproof
materials like PVC or reinforced polyester.
5. Are Water Weight Bags environmentally friendly?
Yes, they use water as the load medium, making them eco-friendly
compared to solid weights.
