Good Quality Rescue Underwater Marine Salvage Subsea Inflatable Air Lift Bags
Description
Underwater Air Lifting Bags (UALBs) are specially designed equipment used in various underwater operations, including salvage, diving, and construction. These innovative bags provide an effective and efficient way to lift sunken objects, create buoyancy, and move heavy loads beneath the water's surface. Constructed from high-quality, durable materials such as reinforced PVC or polyurethane, UALBs are capable of withstanding extreme pressures and harsh underwater conditions. Their unique design allows for easy deployment and rapid inflation, ensuring quick response times in emergency situations.
Equipped with reliable air valves and sturdy lifting straps, UALBs
offer precise control over the lifting process. By filling the bags
with compressed air, the buoyancy force generated enables the safe
and controlled elevation of heavy objects, such as vessels, debris,
or equipment. The bags can be easily deflated after use, making
them compact and convenient for storage and transportation.
With their versatility and adaptability, UALBs have become
invaluable tools for underwater operations. Their gentle and
non-intrusive lifting capabilities ensure minimal impact on
delicate marine ecosystems. In addition, their user-friendly nature
and intuitive operation make them suitable for both experienced
professionals and novice users.
In conclusion, Underwater Air Lifting Bags are essential equipment
that enable efficient and safe underwater lifting operations. Used
in a wide range of applications, these bags are designed to
withstand extreme underwater conditions while providing reliable
and controlled buoyancy.
Specifications
Product Name | Underwater Air Lift Bags, Air Lifting Bags |
Raw Material | Superb PVC Coating Fabric |
Type | Cylindrical, Parachute, Pillow |
Size | 500kg, 1000kg, 5000kg 10000kg,etc |
Thickness | 0.4-1.2mm, or as request |
Color | Yellow,Blue,Black,etc |
Density | 0.33-0.9g/cm3 |
Safety Factor | 7:1 |
Accessories | Valve, Inflatable Tube, Repair Material |
OEM | Welcome |
Warranty | 3 Years |
Tolerances | +/- 0.03 on densities +/- 0.2 mm on thickness +/- 0 to +3mm on width +/- 0 to +3mm on length |
Model | Lifting Capacity | Dimensions | Appr. Weight | |
Parachute | [kg] | [lbs] | [mm] | [kg] |
HM-P01 | 200 | 441 | 800 | 5 |
HM-P02 | 500 | 1,103 | 1,000 | 8 |
HM-P03 | 1,000 | 2,205 | 1,300 | 11 |
HM-P04 | 2,000 | 4,410 | 1,600 | 20 |
HM-P05 | 4,000 | 8,820 | 2,000 | 50 |
HM-P06 | 6,000 | 13,230 | 2,300 | 66 |
HM-P07 | 8,000 | 17,640 | 2,500 | 75 |
HM-P08 | 10,000 | 22,050 | 2,700 | 80 |
HM-P09 | 15,000 | 33,075 | 3,100 | 110 |
HM-P10 | 20,000 | 44,100 | 3,400 | 130 |
HM-P11 | 30,000 | 66,150 | 3,900 | 170 |
HM-P12 | 50,000 | 110,250 | 4,600 | 220 |
HM-P13 | 70,000 | 154,350 | 5,200 | 310 |
HM-P14 | 100,000 | 220,500 | 5,800 | 450 |
HM-P15 | 150,000 | 330,750 | 6,600 | 660 |
HM-P16 | 200,000 | 441,000 | 7,300 | 900 |
*Note: Other sizes can be customized according to the requirements. |

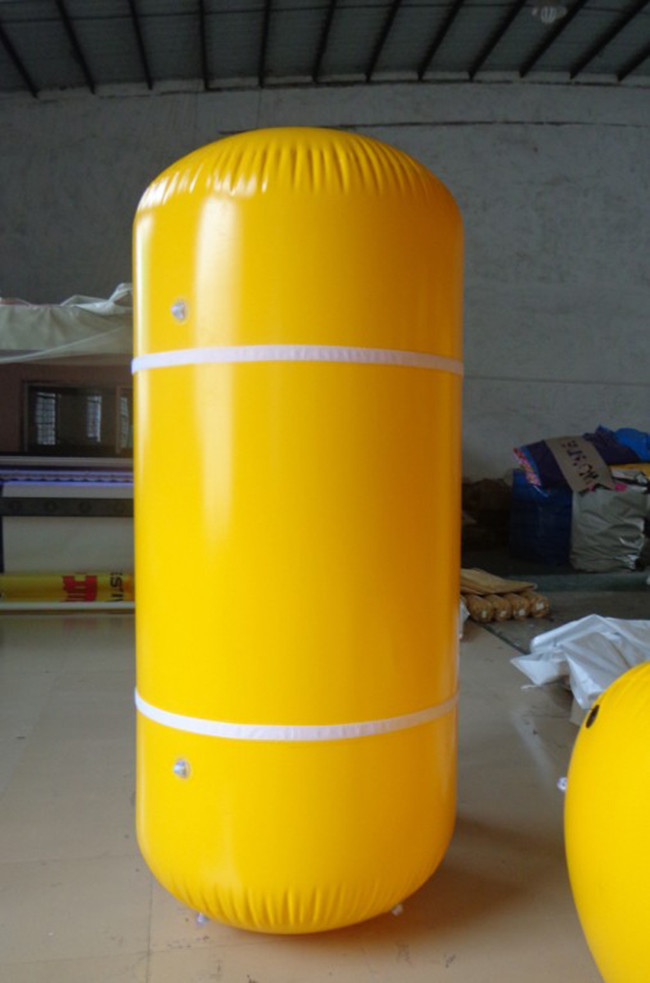

Model | Buoyancy | Diameter | Length | Appr. Weight | ||
Cylindrical | [kg] | [lbs] | [mm] | [mm] | [kg] | |
HM-C01 | 200 | 441 | 500 | 1,000 | 5 | |
HM-C02 | 500 | 1,103 | 800 | 1,000 | 8 | |
HM-C03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 | |
HM-C04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 | |
HM-C05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 | |
HM-C06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 | |
HM-C07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 | |
HM-C08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 | |
HM-C09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 | |
HM-C10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 | |
HM-C11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 | |
HM-C12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 | |
HM-C13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 | |
HM-C14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 | |
HM-C15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 | |
HM-C16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 | |
*Note: Other sizes can be customized according to the requirements. |
Model | Capacity | Length | Width | |
---|---|---|---|---|
Pillow | [kg] | [lbs] | [mm] | [mm] |
HM-P100 | 100 | 220 | 1,020 | 760 |
HM-P250 | 250 | 550 | 1,320 | 820 |
HM-P500 | 500 | 1,100 | 1,300 | 1,200 |
HM-P1000 | 1,000 | 2,200 | 1,550 | 1,420 |
HM-P2000 | 2,000 | 4,400 | 1,950 | 1,780 |
HM-P3000 | 3,000 | 6,600 | 2,900 | 1,950 |
HM-P5000 | 5,000 | 11,000 | 3,230 | 2,030 |
*Note: Other sizes can be customized according to the requirements. |
Features
High lifting capacity
Underwater Air Lifting Bags excel in their ability to lift heavy
objects underwater with ease. Designed and tested for optimal
performance, these bags can handle substantial loads, making them a
professional choice for demanding underwater operations.
Durable and reliable construction
Manufactured using high-quality materials, such as reinforced PVC
or polyurethane, Underwater Air Lifting Bags are built to withstand
extreme pressures and harsh underwater conditions. Their robust
construction ensures long-lasting durability, providing users with
a reliable tool that can be counted on in critical situations.
Easy deployment and operation
These bags are designed for user convenience and efficiency. With
simple and intuitive inflation mechanisms, they can be quickly
deployed and ready for action. The straightforward operation allows
for swift responses in emergency situations, saving valuable time
and resources.
Precise control and safety features
Underwater Air Lifting Bags offer users precise control over the
lifting process. Equipped with reliable air valves and sturdy
lifting straps, these bags ensure a controlled ascent of the load,
minimizing the risk of accidents or damage. Their safety features
make them a dependable choice for professionals who prioritize both
performance and security in their operations.

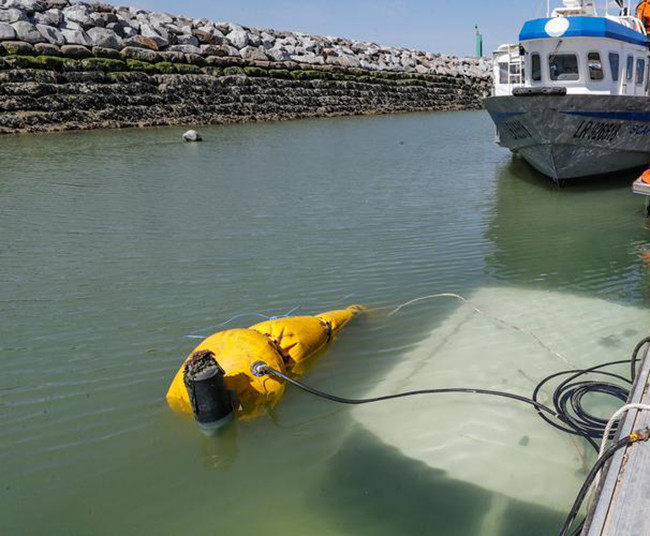

Applications
● Salvage operations
● Underwater construction projects
● Offshore oil and gas industry
● Shipwreck exploration and recovery
● Underwater pipeline maintenance
● Underwater archaeology
● Marine wildlife rescue
● Underwater equipment retrieval
● Diving and underwater sport events support
● Underwater photography and videography
Advantages
Extensive Experience
With over 30 years of manufacturing experience, we have developed a
deep understanding of the intricacies involved in producing
Underwater Air Lift Bags. Our expertise allows us to consistently
deliver high-quality products that meet the requirements of our
customers.
Specialization
We specialize in the production of Underwater Air Lift Bags, which
enables us to focus all our resources and expertise on perfecting
these products. This specialization allows us to stay at the
forefront of industry developments and deliver innovative solutions
to our clients.
Customization
We understand that each underwater operation may have unique
requirements, which is why we offer customization options for our
Air Lift Bags. Whether it's size, carrying capacity, or specific
features, we can tailor our products to suit the specific needs of
our customers.
Quality Assurance
Quality is our utmost priority. We have implemented strict quality
control measures at every stage of the manufacturing process,
ensuring that our Underwater Air Lift Bags meet the highest
standards. Our products go through rigorous testing procedures to
ensure their reliability and durability in challenging underwater
conditions.
![]() |
